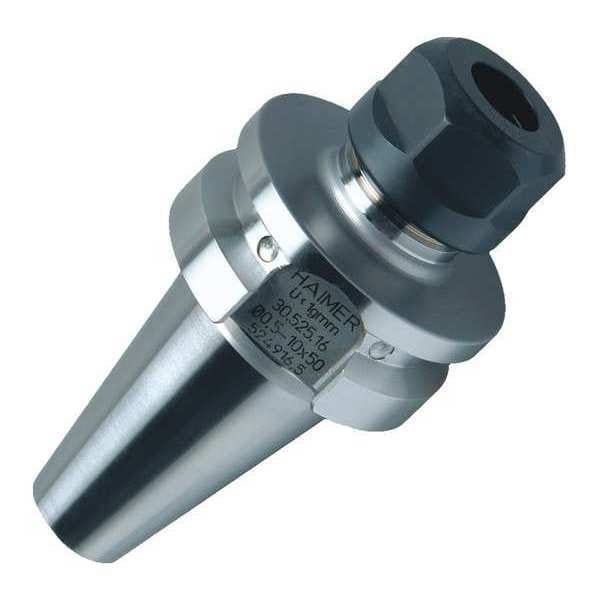

Collet Chuck, ER11, BT30, 3.940 in. Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Cylindrical |
| Taper Size | BT30 |
| Collet Series | ER11 |
| Min. Collet Capacity | 0.02 in |
| Max. Collet Capacity | 0.281 in |
| Projection | 3.937 in |
| Balanceable | Yes |
| Material | High Speed Steel |
| Coolant Through | No |
| Pre-Balanced | Yes |
| For Use With | ER Collets |
| Nose Dia. | 19 mm |
| Coolant Fed | Non-Coolant Through |
| Features | Yes |
| Standards | ISO 15488, JIS B 6339-2 |
| Coolant Supply | Non-Coolant Through |
| Compatible Collet Series | ER11 |
| Speed - Maximum | 22,000 rpm |
| Includes Nut | Nut Included |
| T.I.R. Tolerance | 0.003 mm |
| Compatible Collet Size - Maximum | 7 mm |
| Number of Coolant Ports | 0 |
| Compatible Collet Size - Minimum | 0.5 mm |
| Compatible Collet Wrench | 84.200.11 Wrench |
| Product Type | BT Collet Chuck |
| Balance Rating | G2.5 |
| Nut Diameter | 3/4 in |
| Package Quantity | 1 |
