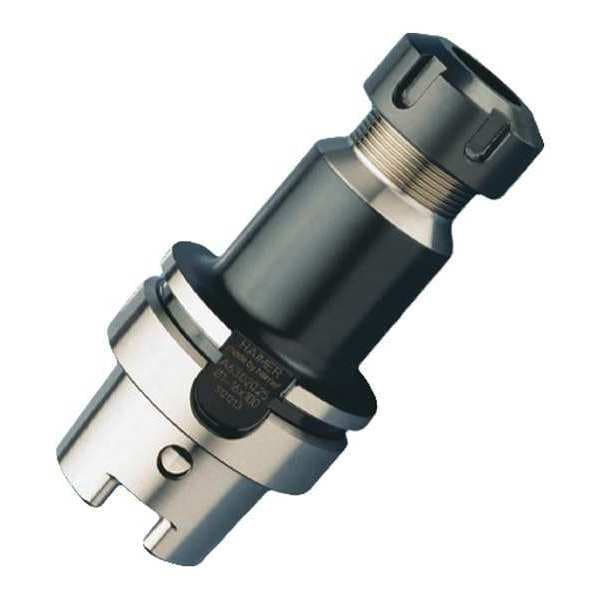

Collet Chuck, ER16, HSK50A, 2.760 in. Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Cylindrical |
| Taper Size | HSK50A |
| Collet Series | ER16 |
| Min. Collet Capacity | 0.02 in |
| Max. Collet Capacity | 0.394 in |
| Projection | 3.937 in |
| Coolant Through | No |
| Balanceable | Yes |
| Pre-Balanced | Yes |
| For Use With | ER Collets |
| Material | High Speed Steel |
| Nose Dia. | 28 mm |
| Coolant Fed | Non-Coolant Through |
| Features | Yes |
| Standards | DIN 69882-6, DIN 69893-1, ISO 15488 |
| Compatible Collet Size - Maximum | 10 mm |
| Includes Nut | Nut Included |
| Speed - Maximum | 25,000 rpm |
| Product Type | HSK Collet Chuck |
| Nut Diameter | 1.102 in |
| Balance Rating | G2.5 |
| Compatible Collet Size - Minimum | 0.5 mm |
| Coolant Supply | Non-Coolant Through |
| Compatible Collet Wrench | 84.200.16 Wrench |
| Number of Coolant Ports | 0 |
| Compatible Collet Series | ER16 |
| T.I.R. Tolerance | 0.003 mm |
| Package Quantity | 1 |
