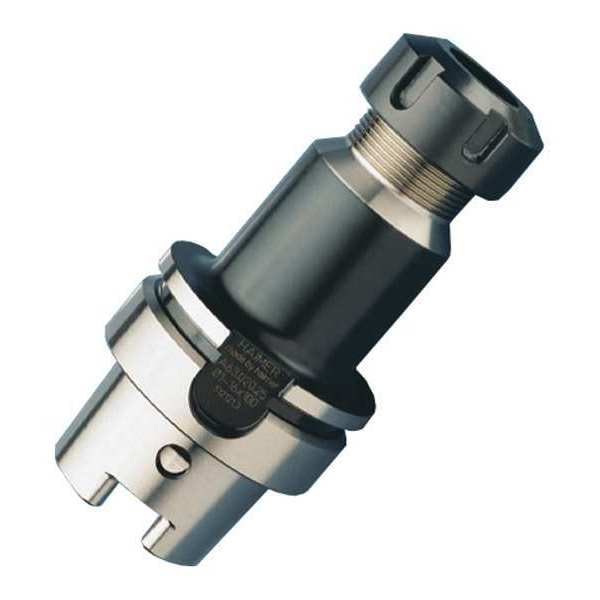

Collet Chuck, ER25, HSK80A, 2.950 in. Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Cylindrical |
| Taper Size | HSK80A |
| Collet Series | ER25 |
| Min. Collet Capacity | 0.039 in |
| Max. Collet Capacity | 0.63 in |
| Projection | 3.937 in |
| Balanceable | Yes |
| Coolant Through | No |
| Pre-Balanced | Yes |
| Material | High Speed Steel |
| For Use With | ER Collets |
| Nose Dia. | 42 mm |
| Coolant Fed | Non-Coolant Through |
| Standards | DIN 69882-6, DIN 69893-1, ISO 15488 |
| Features | Yes |
| Balance Rating | G2.5 |
| T.I.R. Tolerance | 0.003 mm |
| Compatible Collet Series | ER25 |
| Speed - Maximum | 25,000 rpm |
| Compatible Collet Size - Minimum | 1 mm |
| Compatible Collet Wrench | 84.200.25 Wrench |
| Coolant Supply | Non-Coolant Through |
| Includes Nut | Nut Included |
| Compatible Collet Size - Maximum | 16 mm |
| Number of Coolant Ports | 0 |
| Product Type | HSK Collet Chuck |
| Nut Diameter | 1.654 in |
| Package Quantity | 1 |
