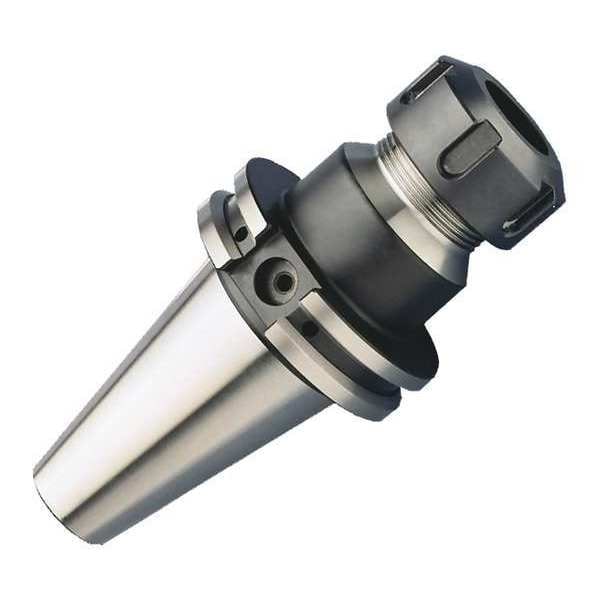

Collet Chuck, ER32, SK50, 3.940 in. Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Cylindrical |
| Taper Size | SK50 |
| Collet Series | ER32 |
| Min. Collet Capacity | 0.039 in |
| Max. Collet Capacity | 0.787 in |
| Projection | 3.937 in |
| Balanceable | Yes |
| Pre-Balanced | Yes |
| For Use With | ER Collets |
| Material | High Speed Steel |
| Coolant Through | No |
| Nose Dia. | 50 mm |
| Coolant Fed | Non-Coolant Through |
| Features | Yes |
| Standards | DIN ISO 7388-1, ISO 15488 |
| Compatible Collet Size - Minimum | 1.5 mm |
| Speed - Maximum | 25,000 rpm |
| T.I.R. Tolerance | 0.003 mm |
| Balance Rating | G2.5 |
| Compatible Collet Wrench | 84.200.32 Wrench |
| Coolant Supply | Coolant Through |
| Nut Diameter | 1.969 in |
| Includes Nut | Nut Included |
| Compatible Collet Series | ER32 |
| Product Type | SK Collet Chuck |
| Compatible Collet Size - Maximum | 20 mm |
| Package Quantity | 1 |
