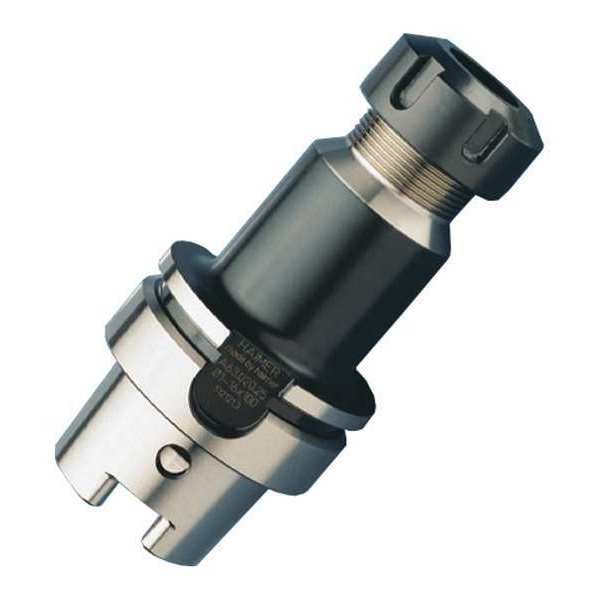

Collet Chuck, ER40, HSK100A, 6.300 in. Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Cylindrical |
| Taper Size | HSK100A |
| Collet Series | ER40 |
| Min. Collet Capacity | 0.079 in |
| Max. Collet Capacity | 1.024 in |
| Projection | 6.299 in |
| For Use With | ER Collets |
| Material | High Speed Steel |
| Pre-Balanced | Yes |
| Balanceable | Yes |
| Coolant Through | No |
| Nose Dia. | 2.48 in |
| Coolant Fed | Non-Coolant Through |
| Features | Yes |
| Standards | DIN 69882-6, DIN 69893-1, ISO 15488 |
| Includes Nut | Nut Included |
| T.I.R. Tolerance | 0.003 mm |
| Number of Coolant Ports | 0 |
| Compatible Collet Size - Minimum | 2.5 mm |
| Coolant Supply | Non-Coolant Through |
| Nut Diameter | 2.48 in |
| Balance Rating | G2.5 |
| Product Type | HSK Collet Chuck |
| Compatible Collet Wrench | 84.200.40 Wrench |
| Compatible Collet Size - Maximum | 26 mm |
| Speed - Maximum | 25,000 rpm |
| Compatible Collet Series | ER40 |
| Package Quantity | 1 |
