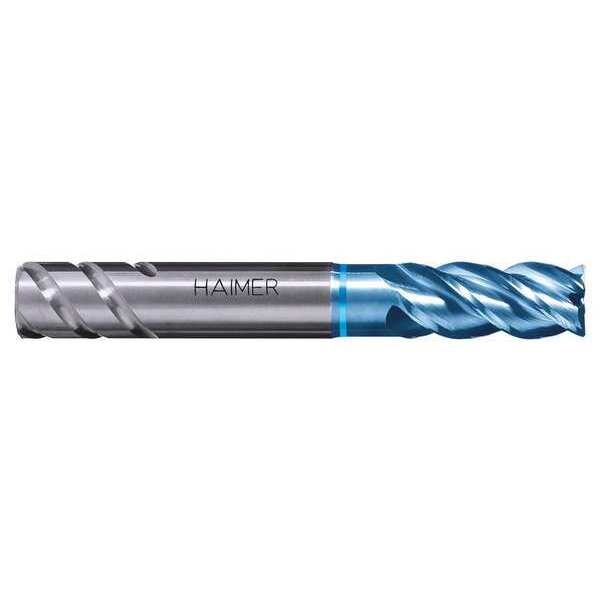

Cor. Rad. End Mill, 0.50mm CR, Carbide
| Measurement System | Metric |
|---|---|
| Milling Diameter | 10 mm |
| Overall Length | 73.00 mm |
| Number of Flutes | 4 |
| End Mill Style | Corner Radius |
| Finish | Tin |
| Length of Cut | 22 mm |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| Shank Type | Straight |
| Shank Dia. | 10 mm |
| Single End/Double End | Single End |
| Neck Length | 8.5 mm |
| Stainless (M) Compatibility | Yes |
| Neck Dia. | 9.5 mm |
| Item | Corner Radius End Mill |
| Helix Angle | 43 deg |
| Corner Radius | 0.5 mm |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| List Number | F1004NN |
| End Mill Application | Finishing, Roughing |
| Milling Dia. | 10 mm |
| Dimension Type | Metric |
| Cutting Direction | Right Hand |
| End Mill Material | Carbide |
| Cast Iron (K) Compatibility | Yes |
| Material - Machining | Carbide |
| Shank Type - Machining | Straight |
| Finish - Machining | TiN |
| Material Grade - Machining | General Purpose |
| Package Quantity | 1 |
