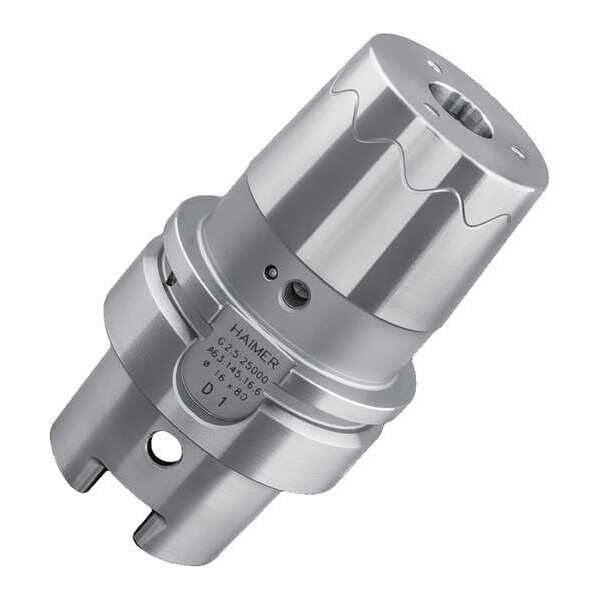

Heavy Duty Power Chuck, 5/8 in. Hole Dia.
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | HSK63A |
| Hole Dia. | 5/8 in |
| Projection | 3.15 in |
| Coolant Fed | Coolant Through |
| For Use With | Carbide and HSS Tools |
| Projection Gage Line to Nose End | 3.15 in |
| Coolant Through | Yes |
| Balanced to RPM | 25,000 |
| Nose Dia. | 1.81 in |
| List Number | A63.145 |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, Heavy Duty, High Runout Accuracy: Less Than 3 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed) |
| Tool Depth | 2.01 in |
| Compatible with Product Type | Inductive Shrink Fit Units |
| Standards | DIN 69893-1 |
| Package Quantity | 1 |
