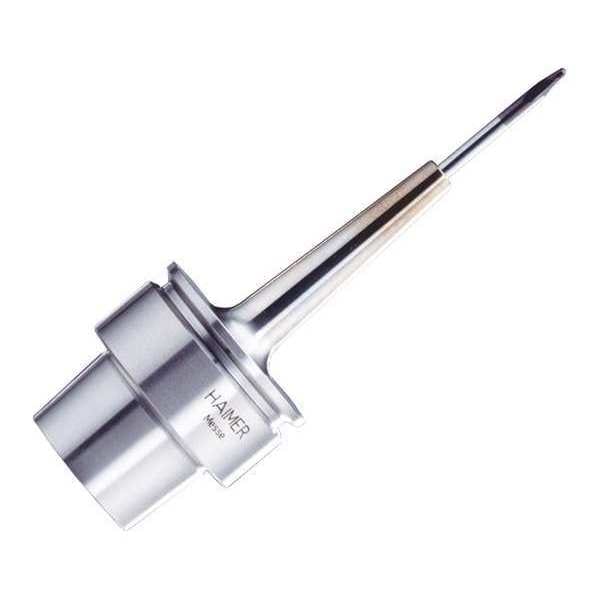

Mini Shrink Chuck, 1/8 in Hole Dia, HSK50E
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | HSK50E |
| Hole Dia. | 1/8 in |
| Projection | 2.76 in |
| Coolant Fed | Coolant Through |
| For Use With | Carbide and HSS Tools |
| Coolant Through | Yes |
| Balanced to RPM | 25,000 |
| Projection Gage Line to Nose End | 2.76 in |
| List Number | E50.180 |
| Nose Dia. | 0.35 in |
| Compatible with Product Type | Shrink Fit Units |
| Features | High Clamping Forces, Highest Runout Accuracy: 3 microns, No Disturbing Edges, Optimum Rigidity, Slim Design, Tool Holders Fine Balanced |
| Standards | DIN 69893-5 |
| Package Quantity | 1 |
