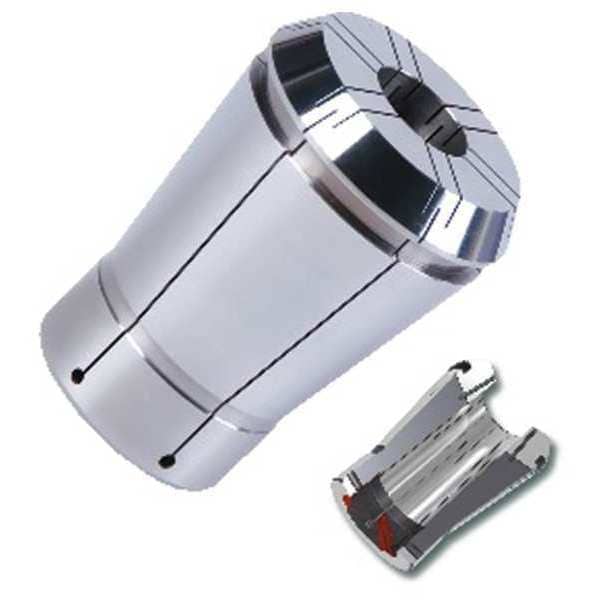

Power Collet, 1/2 in., ER25, w/Safe Lock
| Item | Collet |
|---|---|
| Collet Series | ER25 |
| Range | 1/2" |
| Size | 1/2" |
| Coolant Through | No |
| Includes | Safe Lock |
| For Use With | HAIMER Power Collet Chucks and High Precision Collet Chucks |
| Coolant Fed | Non-Coolant Through |
| Compatible with Product Type | Collet Chucks |
| Face Shape | Round |
| Collet Type | ER |
| For Shank Type | Straight |
| TIR Max. | 0.003 mm |
| Head Dia. | 1 mm |
| Max. Body Dia. | 1/2 in |
| Measurement System | Inch |
| Overall Length | 1-29/64 in |

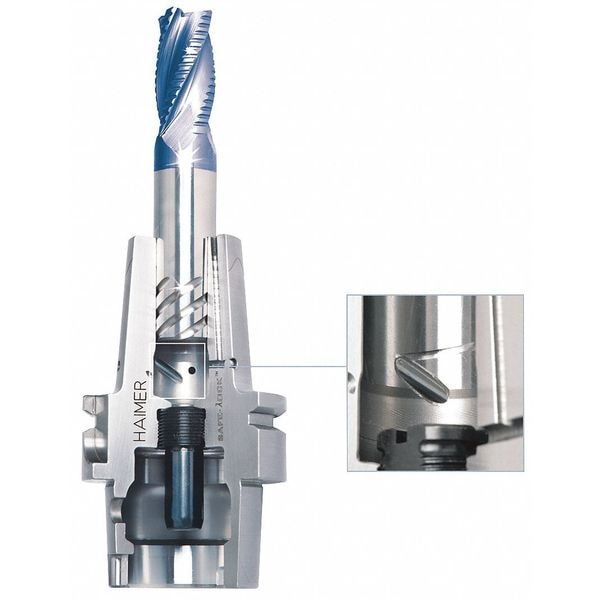

| Features | Safe-Lock Pull Out Protection, Superior Clamping Strength |
| Taper Angle | 8 deg |
| T.I.R. Tolerance | 0.003 mm |
| Outside Diameter - Maximum | 1 in |
| Bore Shape | Round |
| Collapse Range - Maximum | 1/2 in |
| Compatible Collet Chuck | Power Collet Chucks, High Precision Collet Chucks |
| Package Quantity | 1 |
