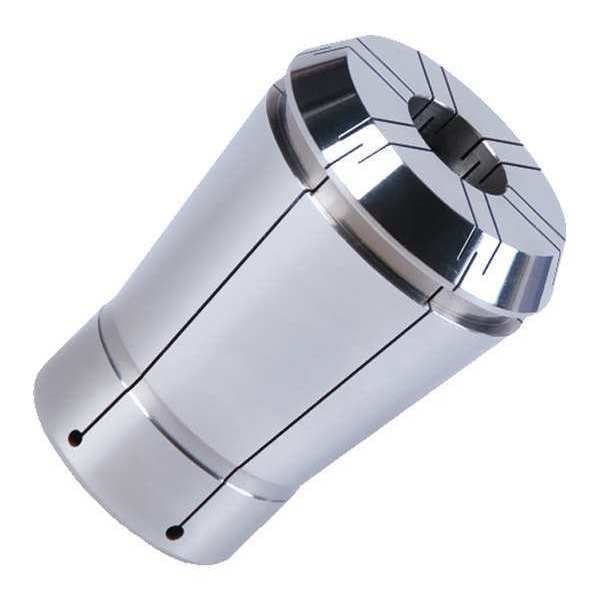

Power Collet, 16mm, ER25
| Item | Collet |
|---|---|
| Collet Series | ER25 |
| Range | 16.0mm |
| Size | 16.0mm |
| Coolant Through | No |
| For Use With | HAIMER Power Collet Chucks and High Precision Collet Chucks |
| Coolant Fed | Non-Coolant Through |
| Taper Angle | 8 deg |
| Measurement System | Metric |
| Head Dia. | 25.45 mm |
| TIR Max. | 0.003 mm |
| For Shank Type | Straight |
| Compatible with Product Type | Collet Chucks |
| Face Shape | Round |
| Overall Length | 37 mm |
| Features | Superior Clamping Strength |
| Min. Size | 16 mm |
| Max. Body Dia. | 16 mm |
| Collet Type | ER |
| Bore Shape | Round |
| Collapse Range - Maximum | 16 mm |
| T.I.R. Tolerance | 0.003 mm |
| Compatible Collet Chuck | Power Collet Chucks, High Precision Collet Chucks |
| Outside Diameter - Maximum | 25.45 mm |
| Package Quantity | 1 |
