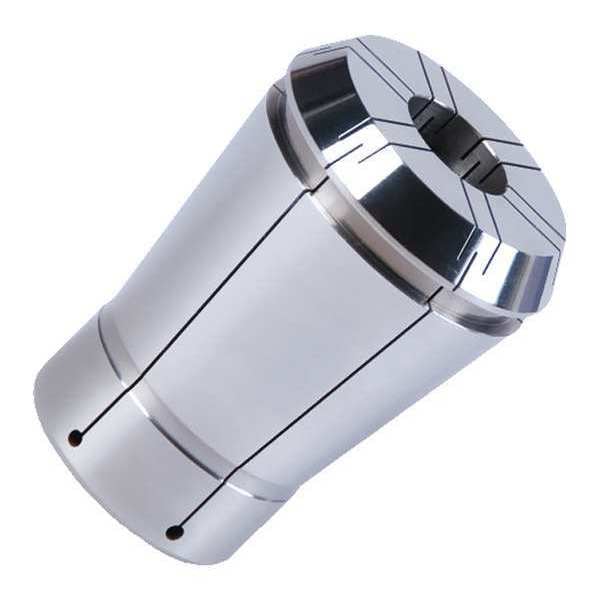

Power Collet, For 2mm Power Collet Chucks
| Item | Collet |
|---|---|
| Collet Series | ER16 |
| Range | 6.0mm |
| Size | 6.0mm |
| Coolant Through | No |
| For Use With | 2mm Power Collet Chucks |
| Coolant Fed | Non-Coolant Through |
| Head Dia. | 16.45 mm |
| Taper Angle | 8 deg |
| Overall Length | 30 mm |
| Measurement System | Metric |
| Face Shape | Round |
| Compatible with Product Type | Collet Chucks |
| Min. Size | 6 mm |
| TIR Max. | 0.003 mm |
| Max. Body Dia. | 2 mm |
| For Shank Type | Straight |
| Collet Type | ER |
| Features | Fits All HAIMER Power Collet Chucks and High Precision Collet Chucks, Superior Clamping Strength |
| Bore Shape | Round |
| T.I.R. Tolerance | 0.003 mm |
| Collapse Range - Maximum | 2 mm |
| Compatible Collet Chuck | Power Collet Chucks, High Precision Collet Chucks |
| Outside Diameter - Maximum | 16.45 mm |
| Package Quantity | 1 |
