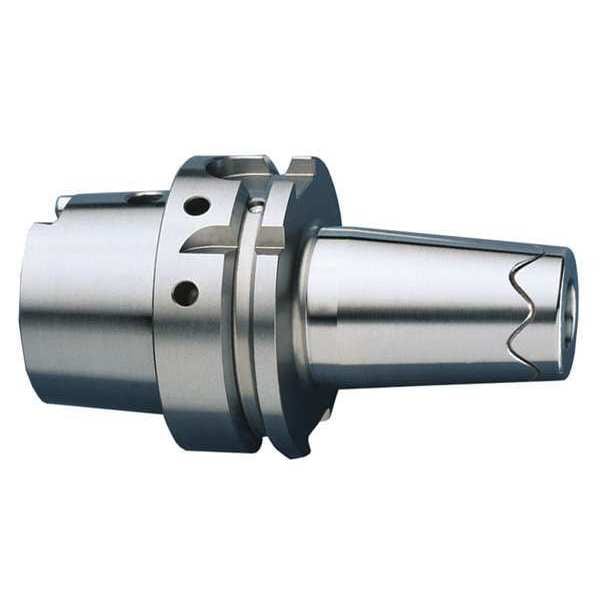

Power Shrink Chck, 3/8 in Hole Dia, HSK63A
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | HSK63A |
| Hole Dia. | 3/8 in |
| Projection | 2.76 in |
| Coolant Fed | Coolant Through |
| For Use With | Carbide and HSS Tools |
| Coolant Through | Yes |
| Projection Gage Line to Nose End | 2.76 in |
| Balanced to RPM | 25,000 |
| Nose Dia. | 1.04 in |
| List Number | A63.145 |
| Tool Depth | 1.7 in |
| Compatible with Product Type | All Inductive Shrink Fit Units |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 0.003 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank |
| Standards | DIN 69893-1 |
| Package Quantity | 1 |
