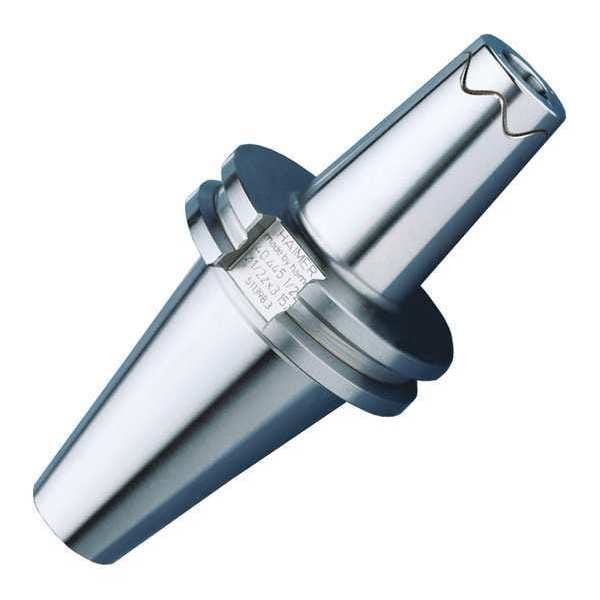

Power Shrink Chuck, 3/8 in Hole Dia, CAT40
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | CV40 |
| Hole Dia. | 3/8 in |
| Projection | 5.12 in |
| Coolant Fed | Coolant Through |
| Balanced to RPM | 25,000 |
| For Use With | Carbide and HSS Tools |
| Coolant Through | Yes |
| Projection Gage Line to Nose End | 5.12 in |
| List Number | 40.844 |
| Nose Dia. | 0.94 in |
| Compatible with Product Type | All Inductive Shrink Fit Units |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 0.003 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank |
| Tool Depth | 1.65 in |
| Standards | ASME B5.50 |
| Package Quantity | 1 |
