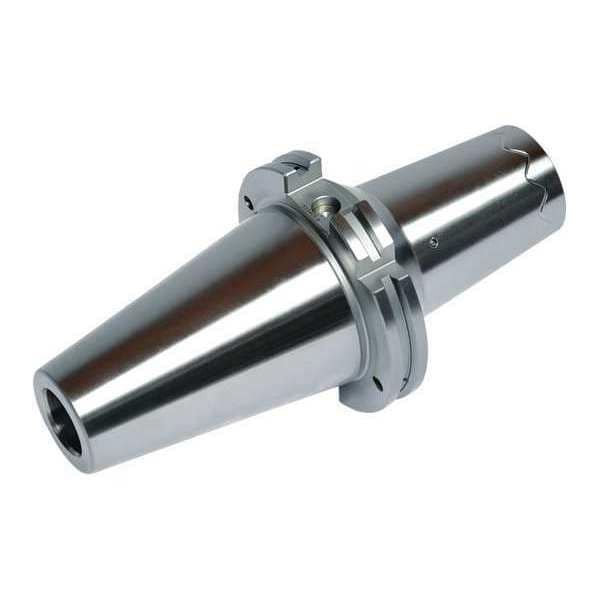

Power Shrink Chuck, 5/8 in Hole Dia, CAT50
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | CV50 |
| Hole Dia. | 5/8 in |
| Projection | 6.3 in |
| Coolant Fed | Coolant Through |
| Balanced to RPM | 25,000 |
| For Use With | Carbide and HSS Tools |
| Coolant Through | Yes |
| Projection Gage Line to Nose End | 6.3 in |
| Nose Dia. | 1.3 in |
| List Number | 50.842 |
| Compatible with Product Type | All Inductive Shrink Fit Units |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 0.003 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank |
| Tool Depth | 1.85 in |
| Standards | ASME B5.50 |
| Package Quantity | 1 |
