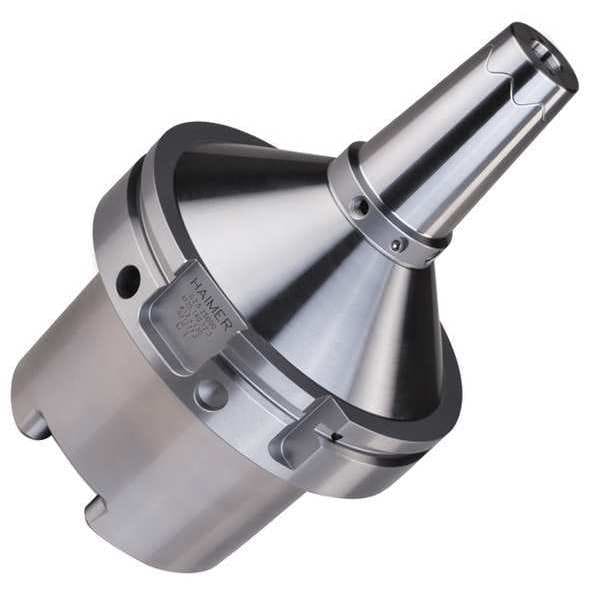

Power Shrink Fit Chuck, 25mm Hole Dia.
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | HSK125A |
| Hole Dia. | 1 in |
| Projection | 9 in |
| Coolant Fed | Coolant Through |
| For Use With | Carbide and HSS Tools |
| Projection Gage Line to Nose End | 9 in |
| Coolant Through | Yes |
| Balanced to RPM | 25,000 |
| Nose Dia. | 1.73 in |
| List Number | A125.146 |

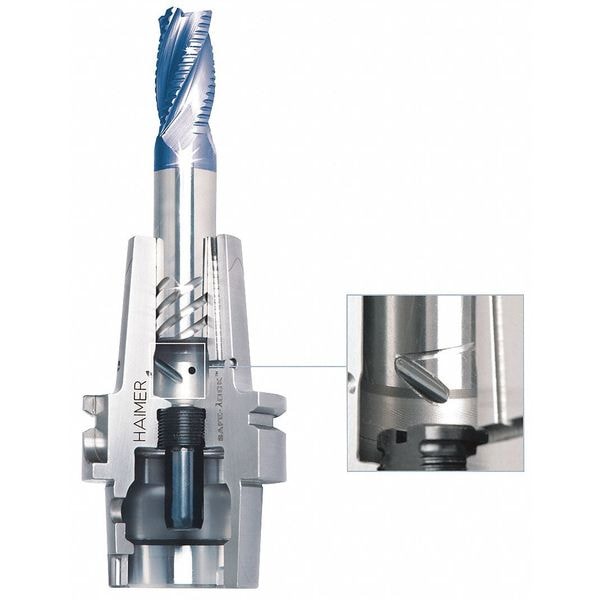

| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, High Runout Accuracy: Less Than 3 mm, Low Tendency Towards Vibrations by Optimized Outer Geometry, Slim Design at the Top, Very Rigid Shank |
| Tool Depth | 2.28 in |
| Compatible with Product Type | All Inductive Shrink Fit Units |
| Standards | DIN 69893-1 |
| Package Quantity | 1 |
