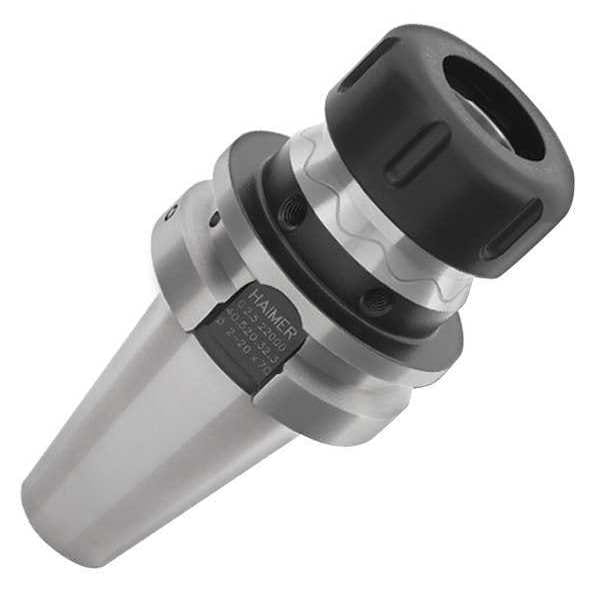

Powr Collet Chck, ER16, BT40, 3.940 in Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Taper |
| Taper Size | BT40 |
| Collet Series | ER16 |
| Min. Collet Capacity | 0.118 in |
| Max. Collet Capacity | 3/8 in |
| Projection | 3.94 in |
| Balanceable | Yes |
| Pre-Balanced | Yes |
| For Use With | ER Power Collets |
| Material | High Speed Steel |
| Coolant Through | No |
| Nose Dia. | 1.1 in |
| Coolant Fed | Non-Coolant Through |
| Features | Yes |
| Standards | ISO 15488, JIS B 6339 |
| Compatible Collet Size - Maximum | 3/8 in |
| Number of Coolant Ports | 0 |
| Compatible Collet Series | ER16 |
| Compatible Collet Wrench | ER Power Collets |
| Compatible Collet Size - Minimum | 0.118 in |
| Product Type | BT Collet Chuck |
| Coolant Supply | Non-Coolant Through |
| Nose Diameter | 1.1 in |
| Package Quantity | 1 |
