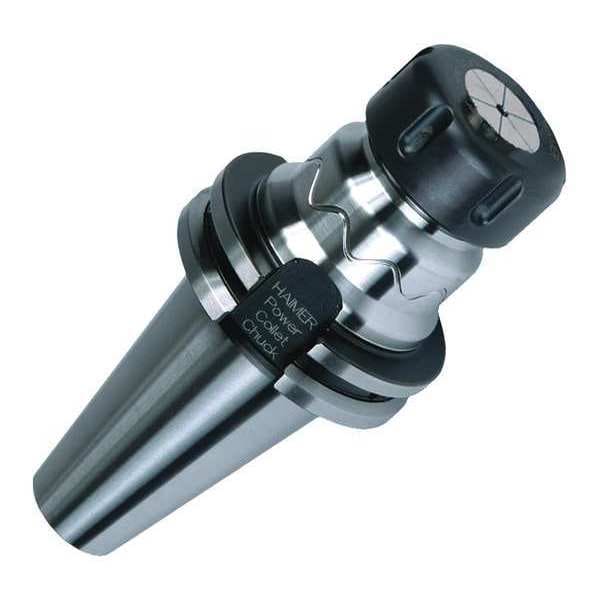

Powr Collet Chck, ER25, CAT40, 3.940in Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Collet Series | ER25 |
| Min. Collet Capacity | 0.118 in |
| Max. Collet Capacity | 5/8 in |
| Projection | 3.937 in |
| Pre-Balanced | Yes |
| Balanceable | Yes |
| For Use With | ER Power Collets |
| Material | High Speed Steel |
| Coolant Through | No |
| Nose Dia. | 1.65 in |
| Coolant Fed | Non-Coolant Through |
| Features | Yes |
| Standards | ASME B5.50, ISO 15488 (Formerly DIN 6499) |
| Compatible Collet Size - Minimum | 3.175 mm |
| Balance Rating | G2.5 |
| Compatible Collet Wrench | ER Power Collets |
| Number of Coolant Ports | 0 |
| Nut Diameter | 1.654 in |
| Speed - Maximum | 25,000 rpm |
| Includes Nut | Nut Included |
| Coolant Supply | Non-Coolant Through |
| T.I.R. Tolerance | 0.003 mm |
| Compatible Collet Series | ER25 |
| Compatible Collet Size - Maximum | 15.875 mm |
| Product Type | CAT Collet Chuck |
| Package Quantity | 1 |
