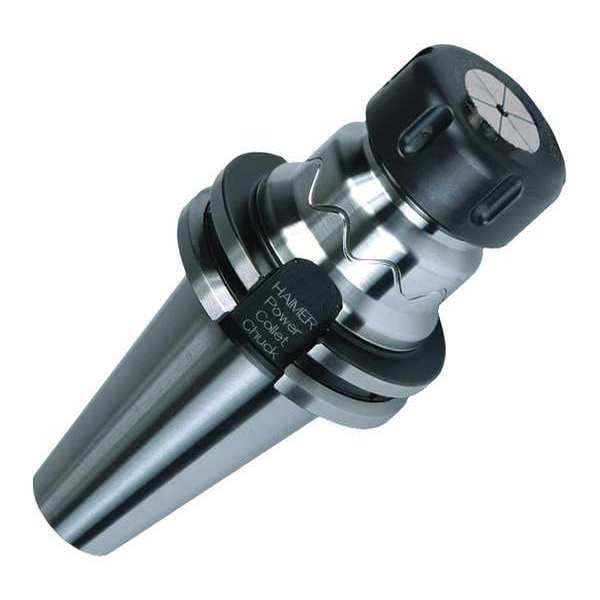

Powr Collet Chck, ER25, SK40, 6.300 in Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Taper |
| Taper Size | SK40 |
| Collet Series | ER25 |
| Min. Collet Capacity | 0.039 in |
| Max. Collet Capacity | 0.63 in |
| Projection | 6.3 in |
| Coolant Through | No |
| For Use With | ER Power Collets |
| Pre-Balanced | Yes |
| Material | High Speed Steel |
| Balanceable | Yes |
| Nose Dia. | 42 mm |
| Coolant Fed | Non-Coolant Through |
| Standards | DIN 69871, ISO 15488 |
| Features | Yes |
| Product Type | SK Collet Chuck |
| Nose Diameter | 42 mm |
| Number of Coolant Ports | 0 |
| Compatible Collet Size - Minimum | 0.039 in |
| Compatible Collet Wrench | ER Power Collets |
| Compatible Collet Size - Maximum | 0.63 in |
| Coolant Supply | Non-Coolant Through |
| Compatible Collet Series | ER25 |
| Package Quantity | 1 |
