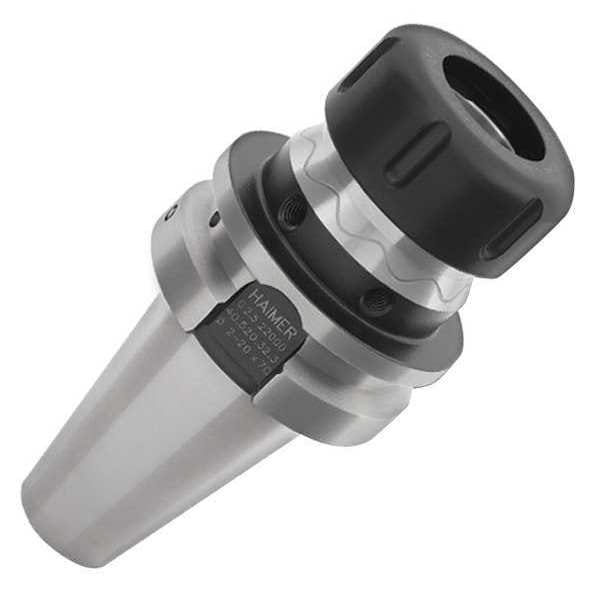

Powr Collet Chck, ER32, BT40, 3.940 in Proj
| Item | Collet Chuck |
|---|---|
| Dimension Type | Decimal Inches |
| Shank Type | Cylindrical |
| Taper Size | BT40 |
| Collet Series | ER32 |
| Min. Collet Capacity | 0.118 in |
| Max. Collet Capacity | 3/4 in |
| Projection | 3.937 in |
| Pre-Balanced | Yes |
| Coolant Through | No |
| Balanceable | Yes |
| Material | High Speed Steel |
| For Use With | ER Power Collets |
| Nose Dia. | 1.97 in |
| Coolant Fed | Non-Coolant Through |
| Standards | ISO 15488, JIS B 6339-2 |
| Features | Yes |
| Product Type | BT Collet Chuck |
| Compatible Collet Size - Minimum | 2 mm |
| Compatible Collet Wrench | 84.650.32 Wrench |
| Speed - Maximum | 25,000 rpm |
| Balance Rating | G2.5 |
| Compatible Collet Series | ER32 |
| Compatible Collet Size - Maximum | 20 mm |
| T.I.R. Tolerance | 0.003 mm |
| Coolant Supply | Coolant Through |
| Nut Diameter | 1.969 in |
| Includes Nut | Nut Included |
| Package Quantity | 1 |
