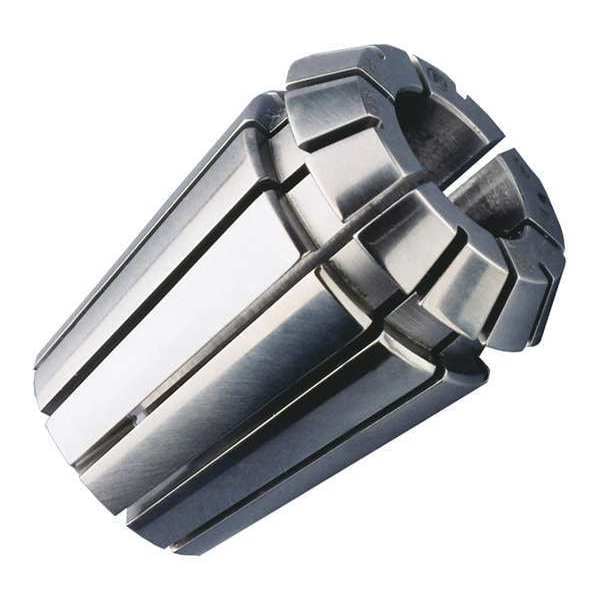

Precision Collet, 4 to 5mm, ER16
| Item | Collet |
|---|---|
| Collet Series | ER16 |
| Range | 4 to 5 mm |
| Size | 4.0mm to 5.0mm |
| Coolant Through | No |
| For Use With | Collet Chucks |
| Coolant Fed | Non-Coolant Through |
| TIR Max. | 5 microns |
| Overall Length | 27 mm |
| Number of Slots | 6 |
| Compatible with Product Type | ER Collet Chucks |
| Face Shape | Round |
| Collet Type | ER |
| Head Dia. | 17 mm |
| Finish - Machining | Bright |
| Min. Size | 4 mm |
| Features | Superior Clamping Strength |
| Max. Body Dia. | 5 mm |
| Standards | DIN 6499, ISO 15488 |
| Taper Angle | 8 deg |
| Measurement System | Metric |
| Bore Shape | Round |
| Outside Diameter - Maximum | 17 mm |
| Finish | Polished |
| Compatible Collet Chuck | ER Collet Chucks |
| Collapse Range - Minimum | 4 mm |
| T.I.R. Tolerance | 5 microns |
| Collapse Range - Maximum | 5 mm |
| Package Quantity | 1 |
