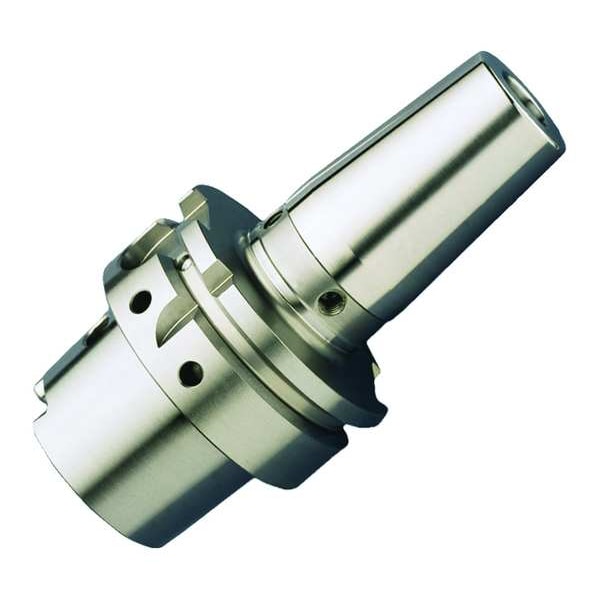

Shrink Chuck, 1/2 in. Hole Dia., HSK63A
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | HSK63A |
| Hole Dia. | 1/2 in |
| Projection | 3.54 in |
| Coolant Fed | Coolant Through |
| Projection Gage Line to Nose End | 3.54 in |
| Balanced to RPM | 25,000 |
| For Use With | Carbide and HSS Tools |
| Coolant Through | Yes |
| List Number | A63.140 |
| Nose Dia. | 0.94 in |
| Includes | Backup Screw |
| Tool Depth | 1.85 in |
| Features | Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 3 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws |
| Compatible with Product Type | Shrink Fit Units |
| Standards | DIN 69893-1 |
| Package Quantity | 1 |
