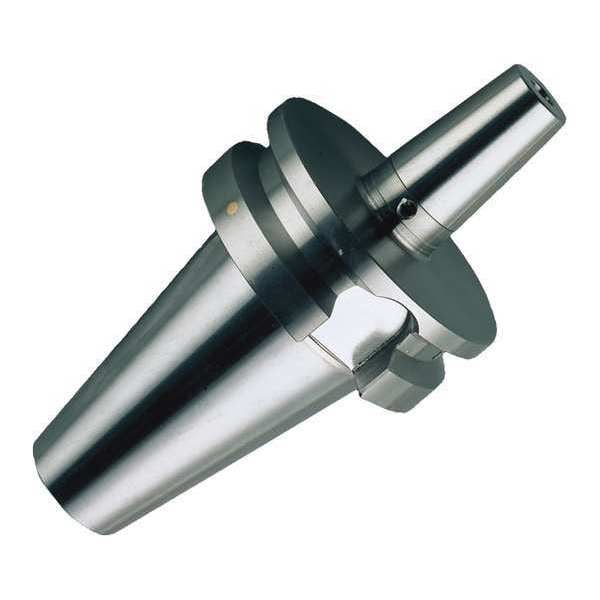

Shrink Chuck, 12mm Hole Dia., BT50
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | BT50 |
| Hole Dia. | 6 mm |
| Projection | 100 mm |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Balanced to RPM | 25,000 |
| Projection Gage Line to Nose End | 100 mm |
| For Use With | Carbide and HSS Tools |
| Includes | Backup Screw |
| List Number | 50.640 |
| Nose Dia. | 21 mm |
| Features | Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 0.003 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws |
| Compatible with Product Type | Shrink Fit Units |
| Tool Depth | 36 mm |
| Standards | JIS B 6339 |
| Package Quantity | 1 |
