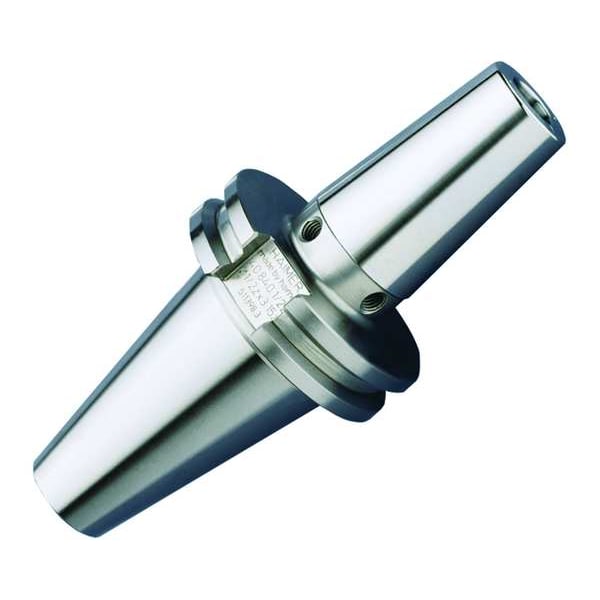

Shrink Chuck, 1/4 in. Hole Dia., CAT40
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | CV40 |
| Hole Dia. | 1/4 in |
| Projection | 3.15 in |
| Coolant Fed | Coolant Through |
| Balanced to RPM | 25,000 |
| Projection Gage Line to Nose End | 3.15 in |
| For Use With | Carbide and HSS Tools |
| Coolant Through | Yes |
| List Number | 40.840 |
| Nose Dia. | 53/64 in |
| Tool Depth | 1.42 in |
| Compatible with Product Type | Shrink Fit Units |
| Features | Dynamic Form: Reinforced Shank at Long Tool Holders, Compromises Between Slimness (Marginal Interference Contour) and Rigidity, Extreme Clamping Torque by High Pressing in the Clamping Bore, High Runout Accuracy: Less Than 3 mm, Short Chamfer, Threaded Bores for Simple and Fast Balancing with Screws |
| Standards | ASME B5.50 |
| Package Quantity | 1 |
