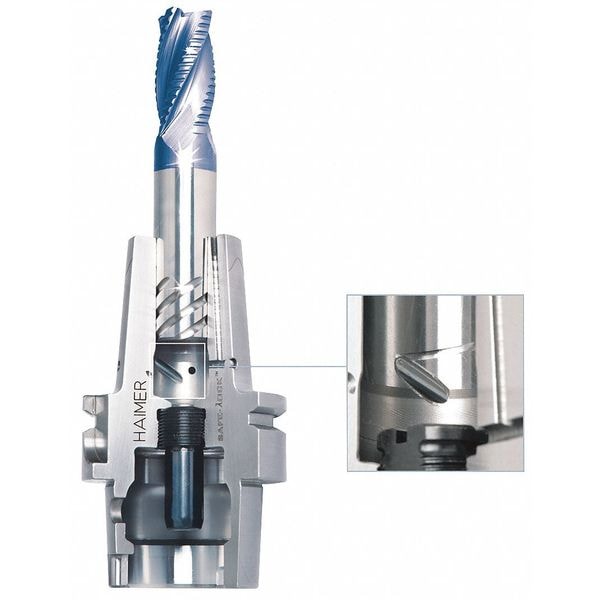

Shrink Fit Chuck, 3mm Hole Dia., BT50
| Item | Shrink Fit Tool Holder |
|---|---|
| Taper Size | BT50 |
| Hole Dia. | 40 mm |
| Projection | 200 mm |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Projection Gage Line to Nose End | 200 mm |
| Balanced to RPM | 25,000 |
| For Use With | Carbide and HSS Tools |
| List Number | 50.656 |
| Nose Dia. | 82 mm |
| Features | Dirt Groove in the Clamping Bore for Safe Clamping Force, Expansion Grooves in the Clamping Bore, Extremely Rigid Outer Geometry, Heavy Duty, High Runout Accuracy: Less Than 0.003 mm, Reinforced Wall Thickness at the Clamping Range, Standard with Cool Jet (Can be Re-Sealed) |
| Tool Depth | 88 mm |
| Compatible with Product Type | Inductive Shrink Fit Units |
| Standards | JIS B 6339 |
| Package Quantity | 1 |
