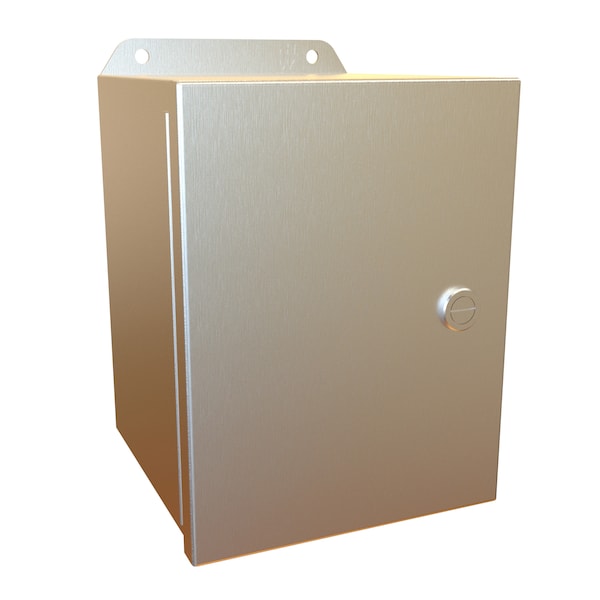

1/4 Turn Latch Electrical Enclosures, 8 in H, 6 in D, 6 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 8 in |
| Nominal Depth | 6 in |
| Closure Method | 1/4 Turn Latch |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Natural |
| Finish | Smooth Brushed |
| Mounting | Panel |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure NEMA Rating | NEMA 4X |
| Includes | Inner Panel |
| Standards | UL 508A Type 3R, 4, 4X, 12, and 13; CSA Type 3R, 4, 4X, 12, and 13; Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 4X, 12 and 13; IEC 60529, IP66 |
| Enclosure Cover Type | Hinged |
| Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures; Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem; For high temperature applications, a gasket retainer may be required, please refer to factory. |
| Package Quantity | 1 |
