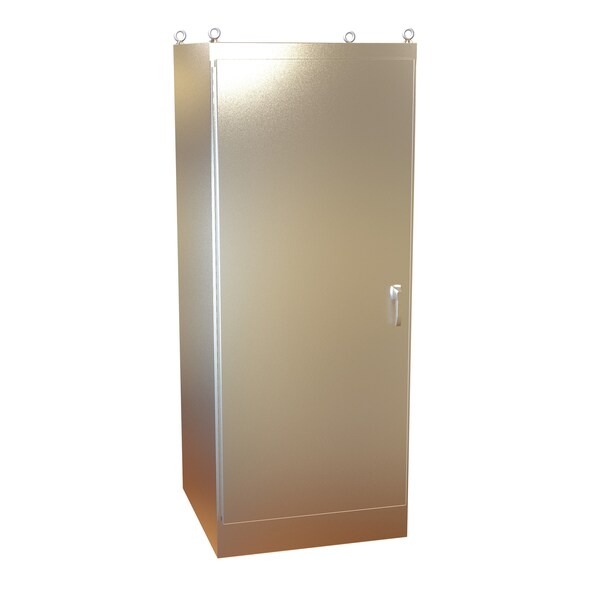

304 Stainless Steel Electrical Enclosures, 90.06 in H, 36.06 in D, 36.06 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 36.06 in |
| Nominal Height | 90.06 in |
| Nominal Depth | 36.06 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | 304 Stainless Steel |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Natural |
| Finish | Smooth Brushed |
| Mounting | Freestanding |
| Solid / Clear Cover | Solid |
| Standards | UL 508A Type 3R, 4X and 12; CSA Type 3R, 4X and 12; Complies with: NEMA Type 3R, 4X, 12 and 3 IEC 60529, IP66; NEMA Type 3R, 4X, 12 and 3; IEC 60529, IP66 |
| Application | Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mount ing or rack mounting of equipment; Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem; A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements. |
| Package Quantity | 1 |
