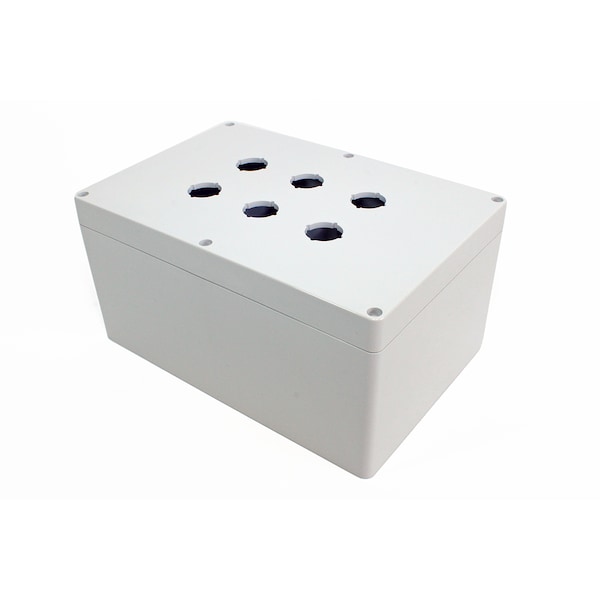

Caja de botones de 6 orificios de 22.5mm fabricada con polycarbonate 1554VB de alta calidad, resistente y duradera.
| Item | Enclosure |
|---|---|
| Material | Polycarbonate |
| Height | 9.5 |
| Width | 6.3 |
| Depth | 4.7 |
| Color | Light Gray |
| Standards | IP66; NEMA 4, 4X, 6, 6P, 12 & 13 6 pushbutton enclosures do not meet Type 6/6P; 6 pushbutton enclosures do not meet Type 6/6P; UL94 5VA |
| Construction | Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail mounted components; The polycarbonate material carries a UL flammability rating of UL94 5VA and is suitable for outdoor use; Lid and mounting holes are located outside of the gasket seal; Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly); Heavy duty 16 gauge galvanized steel panels available (see chart); All stainless steel hardware to avoid corrosion caused by dissimilar metals; Gasket is a preformed, high temperature U.L. listed silicone rubber. Gasket is replaceable; Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water; Internal DIN rail mounting tabs; Threaded (M3) integral brass inserts & standoffs designed for M3.5 or #6 self tapping screws for P.C. board or inner panel mounting in all but the smallest size; Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size |
| Size | 9.5 in x 6.3 in x 4.7 in (H x W x D) |
| Additional Description | 6 HOLE 22.5MM P-BUTTON 1554VB |
| Finish | Color is light gray (RAL 7035) |
| Package Quantity | 1 |
