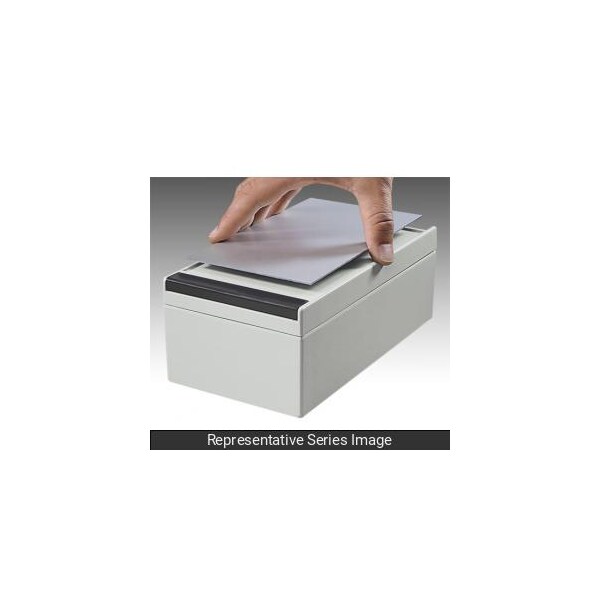

Aluminum Electrical Enclosures, 3.94 in H, 3.23 in D, 3.94 in W, NEMA 1, 4, 4X, 12, 13, Clip On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 3.94 in |
| Nominal Height | 3.94 in |
| Nominal Depth | 3.23 in |
| Enclosure NEMA Rating | NEMA 1, 4, 4X, 12, 13 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Clip On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Key Features | Modern, high quality instrument enclosure; Material - Aluminum die-cast: GD SI 12 / DIN 1725; Shallow lid, deep body; Captive stainless steel lid screws; Enclosure can be mounted to wall or shelf after closing the lid; Integrated 1.7 mm recess in lid for membrane keypads and front panels; Silicone gasket standard. (-50ºC up to +140ºC); Dark grey plastic clip-on design covers - to hide mounting & lid screws (plastic - polyoxymethylene) - RAL 7016; Complete with lid captivation devices; Degree of protection: NEMA 4X, IP66; UL Listed; Textured polyester powder coat, light grey RAL 7035. (can be supplied unpainted on special order) |
| Package Quantity | 1 |
