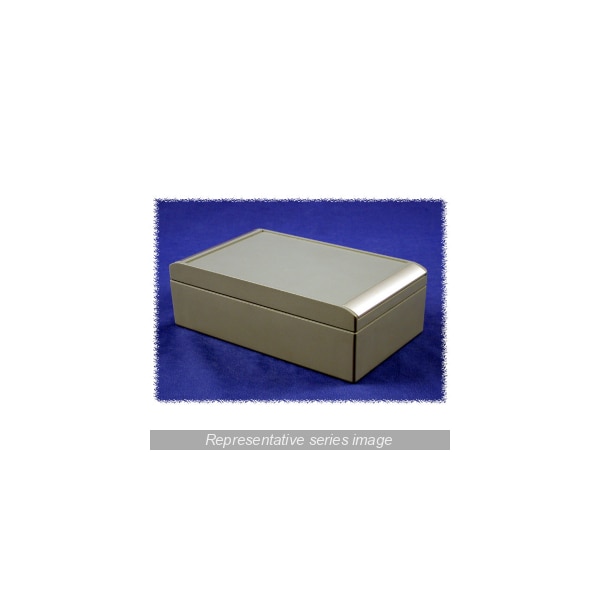

Aluminum Electrical Enclosures, 7.87 in H, 4.72 in D, 12.99 in W, NEMA 1, 4, 4X, 12, 13, Clip On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12.99 in |
| Nominal Height | 7.87 in |
| Nominal Depth | 4.72 in |
| Enclosure NEMA Rating | NEMA 1, 4, 4X, 12, 13 |
| Material of Enclosure | Aluminum |
| Closure Method | Screws |
| Enclosure Cover Type | Clip On |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Textured Polyester Powder |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP67 |
| Key Features | Modern, high quality instrument enclosure; Material - Aluminum die-cast: GD SI 12 / DIN 1725; Shallow lid, deep body; Captive stainless steel lid screws; Enclosure can be mounted after closing lid; Integrated 1.7 mm recess in lid for membrane keypads and front panels; Neoprene oil and petrol resistant - thermoplastic gasket standard. (-40ºC up to +120ºC); Clip-on design covers - to hide mounting & lid screws (plastic - polyoxymethylene) - grey RAL 7040; Complete with lid captivation devices; Degree of protection: NEMA 4X, IP67; CSA and UL listed, Type 4; Textured polyester powder coat, grey RAL 7040. (can be supplied unpainted on special order) |
| Package Quantity | 1 |
