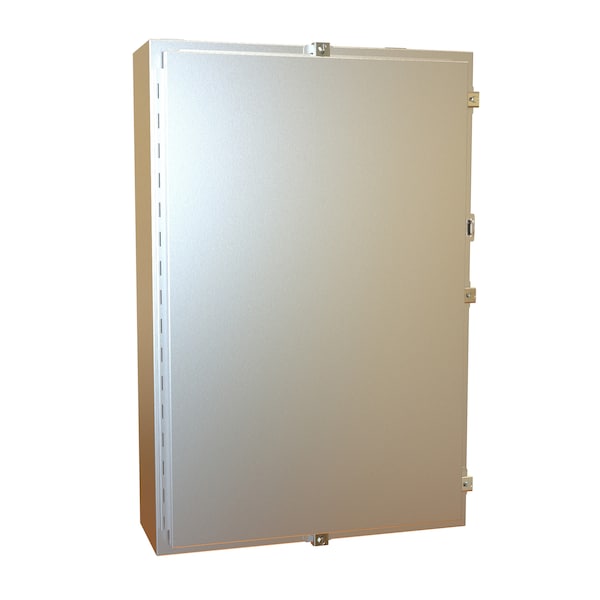

Clamps Electrical Enclosures, 36 in H, 8 in D, 24 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 36 in |
| Nominal Depth | 8 in |
| Closure Method | Clamps |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Natural |
| Finish | Smooth Brushed |
| Mounting | Wall |
| Enclosure Cover Type | Hinged |
| Material of Enclosure | 304 Stainless Steel |
| Solid / Clear Cover | Solid |
| Includes | Inner Panel |
| Enclosure NEMA Rating | NEMA 4X |
| Standards | UL 508A Type 3R, 4, 4X, and 12; CSA Type 3R, 4, 4X, and 12; Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 4X, 12 and 13; IEC 60529, IP66 |
| Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures; Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem. |
| Package Quantity | 1 |
