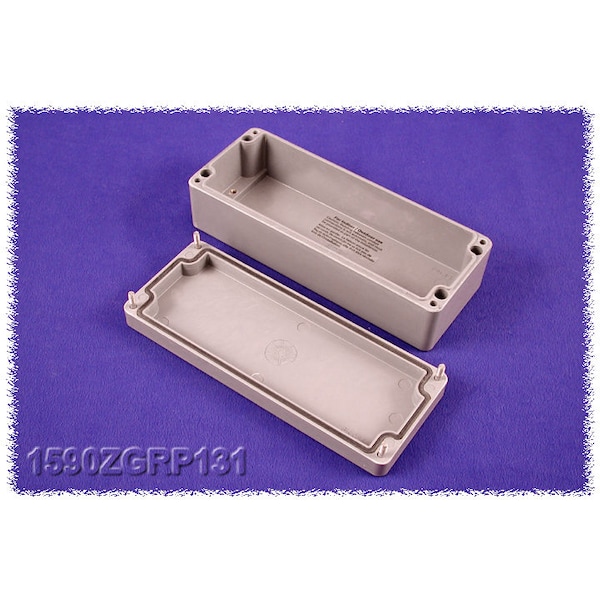

Glass Reinforced Polyester Electrical Enclosures, 7.48 in H, 2.17 in D, 2.94 in W, Screw On
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 2.94 in |
| Nominal Height | 7.48 in |
| Nominal Depth | 2.17 in |
| Enclosure NEMA Rating | NEMA 1, 4, 4X, 12, 13 |
| Material of Enclosure | Glass Reinforced Polyester |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Gray |
| Finish | Smooth |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| UL File | E65324 |
| Key Features | Molded from a grey, glass reinforced polyester. Smooth finish; Includes gasketed lid with two piece "tongue & groove" construction; Heavy duty, thick wall design; North American Mark of Safety - C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) - File #E65324 and IP66 Rated; Impact rating of IK08 per IEC62262; Lid contains self captivated stainless steel screws; Gasket material is EPDM sponge rubber with temperature rating of -40 degrees C to +120 degrees C (-40 degrees F to +248 degrees F); Easy wall mounting via "through box - blind hole" construction, outside of the gasket protection (see photos below); Internal mounting shelf & bonding / mounting nuts molded in (see "open" photos or drawings for more details); Optional 16 gauge, galvanized steel inner panels available (see drawings for details and part number listing below). |
| Flame Rating | UL94 V-0 |
| Package Quantity | 1 |
