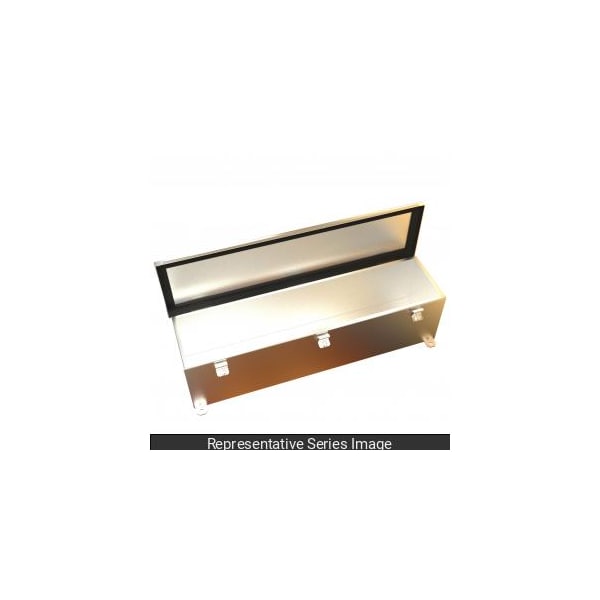

N4X Wiring Trough, 8 x 8 x 24, SS
| Item | Enclosure |
|---|---|
| Finish | Troughs and covers are natural stainless steel with a smooth brushed finish. |
| Length | 8 |
| Width | 8 |
| Material | Stainless Steel |
| Application | Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water while providing a measure of corrosion protection. |
| Standards | UL 870 Type 1, 12, 4, 4X; CSA Type 1, 12, 4, 4X; Complies with NEMA Type 12, 4, 4X IEC 60529, IP66; NEMA Type 12, 4, 4X; IEC 60529, IP66 |
| Depth | 24 |
| Additional Description | TYPE 4X WRG TROUGH - 8X8X24 |
| Construction | Formed 14 gauge 304 stainless steel; Smooth continuously welded seams; Butt hinged cover is secured with easily operated screw clamps; Oil resistant gaskets are permanently secured; 12 gauge external mounting feet are welded to the back. |
| Size | 8 in x 8 in x 24 in (H x W x D) |
| Package Quantity | 1 |
