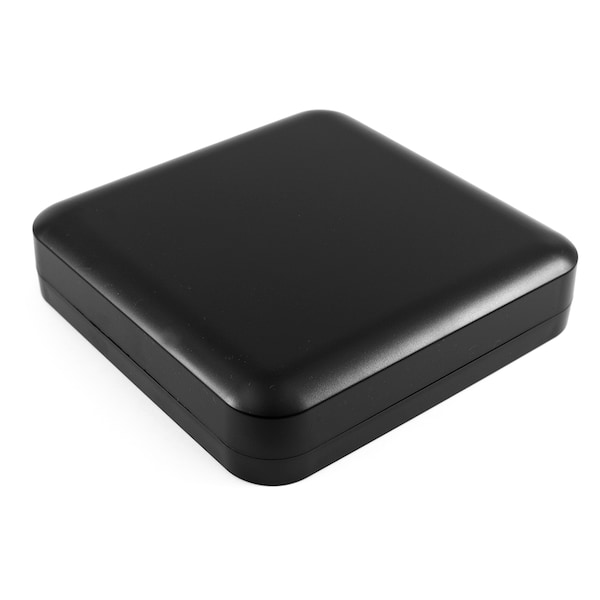

Polycarbonate Electrical Enclosures, 7.87 in H, 1.77 in D, 7.87 in W, NEMA 4, 4X, 6, 6P, 12, 13
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 7.87 in |
| Nominal Height | 7.87 in |
| Nominal Depth | 1.77 in |
| Enclosure NEMA Rating | NEMA 4, 4X, 6, 6P, 12, 13 |
| Material of Enclosure | Polycarbonate |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Black |
| Mounting | Flush, Flange, Desktop, Tabletop |
| Solid / Clear Cover | Solid |
| IP Rating | IP68 |
| Key Features | Ideally suited for mounting printed circuit boards; Can be used in a tabletop configuration or two different wall-mount configurations; Rounded corners and face provide a more modern look while still offering superior water-tight ratings; Available in black or gray ABS plastic or UL listed polycarbonate; ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use; Polycarbonate versions are UV stabilized for outdoor use and carry a UL94-5VA flammability rating. For indoor or outdoor use; Polycarbonate versions are cUL and UL 508A listed (File # E65324), NEMA 4, 4X, 6, 6P. ABS plastic versions are not UL listed; Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water; Gasket is one piece made from high temperature, U.L. listed silicone; ABS versions are designed to meet IP66; Polycarbonate versions are designed to meet IP68; Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time; Aluminum inner panels are available as accessories. Sold separately. See table below. |
| Flame Rating | UL94 V-0 |
| UL File | E65324 |
| Package Quantity | 1 |
