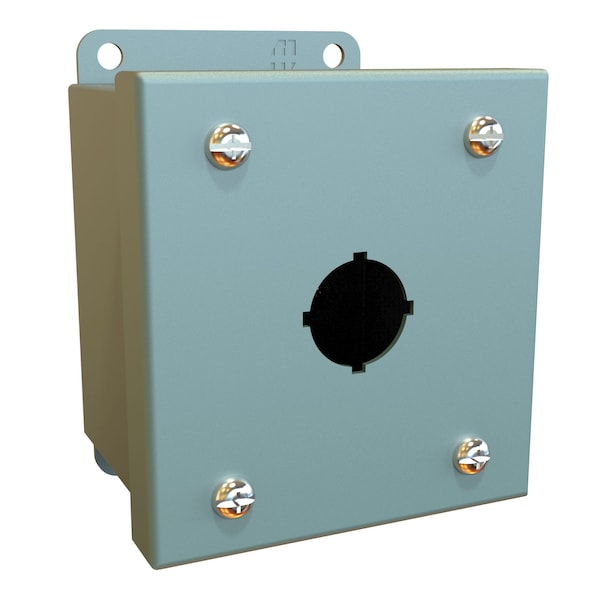

Caja de botón pulsador, 1 botón pulsador x 22.5mm, Acero/Gris.
| Item | Enclosure |
|---|---|
| Material | Steel |
| Height | 3.5 |
| Width | 3.3 |
| Depth | 2.8 |
| Color | Gray |
| Standards | UL 508A Type 12 and 13; CSA Type 12 and 13; Complies with NEMA Type 12 and 13 IEC 60529, IP54; NEMA Type 12 and 13; IEC 60529, IP54; Appropriate components are required to maintain these standards. |
| Finish | Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating. |
| Construction | Formed 14 gauge steel except A and B which are 16 gauge; Smooth continuously welded seams; Welded brackets provide for enclosure mounting; Captive cover screws thread into sealed wells; Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table); Oil resistant gasket and adhesive; A bonding stud is provided on the door and a grounding stud is provided on the enclosure. |
| Application | Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights; Provides protection from dirt, dust, oil and water. |
| Additional Description | Pushbutton Encl - 1 PB x 22.5mm - Steel/Gray |
| Size | 3.5 in x 3.3 in x 2.8 in (H x W x D) |
| Package Quantity | 1 |
