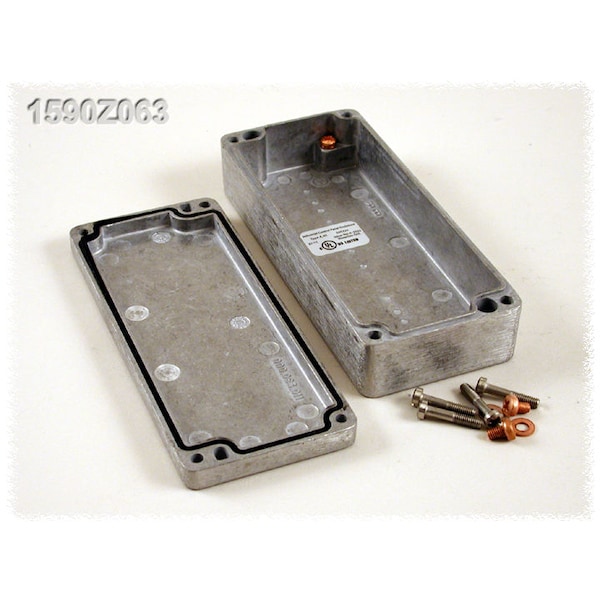

Screws Electrical Enclosures, 5.91 in H, 1.43 in D, 2.53 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 2.53 in |
| Nominal Height | 5.91 in |
| Nominal Depth | 1.43 in |
| Closure Method | Screws |
| Metallic / Non-Metallic | Metallic |
| Color | Natural |
| Finish | Unfinished |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Type | Screw On |
| IP Rating | IP68 |
| Material of Enclosure | Aluminum |
| Enclosure NEMA Rating | NEMA 4, 4X, 6, 6P, 12, 13 |
| Key Features | Rugged, diecast aluminum alloy electronic instrument enclosure; Two piece tongue and groove construction with a replaceable one piece silicone rubber gasket provides protection against ingress of dust and water. Gasket supplied loose inside the enclosure (not pre-installed); Gasket has a temperature rating of -40C to +150C (-40F to 302F); Ideal for repetitive opening and closing; Four recessed stainless steel machine screws secure lid into tapped holes; Easy to wall mount using blind through hole construction, located outside of gasket protection; Lid screws are self-captivating and create threads on first installation, excluding 1590Z060, 1590Z061, 1590Z062, and 1590Z063 models; Designed to meet IP68; North American Mark of Safety - cUL & UL listed. Certified to Type 4, 4X, 6, 6P; All sizes except 1590Z060** carry an impact rating of IK08 per IEC62262; 16 gauge galvanized steel inner panels are optional and available for most sizes; Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001); For non-metallic (glass reinforced polyester) versions of these enclosures, see series 1590ZGRP |
| Package Quantity | 1 |
