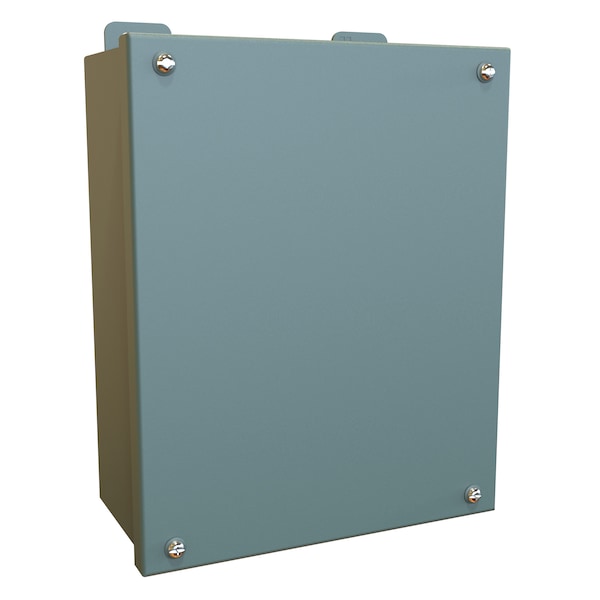

Threaded Electrical Enclosures, 10 in H, 4 in D, 8 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 10 in |
| Nominal Depth | 4 in |
| Closure Method | Threaded |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Powder Coated |
| Enclosure NEMA Rating | NEMA 12 |
| Solid / Clear Cover | Solid |
| Material of Enclosure | Steel |
| Enclosure Cover Type | Screw On |
| Standards | UL 508A Type 12 and 13; CSA Type 12 and 13; Complies with NEMA Type 12 and 13 IEC 60529, IP54; NEMA Type 12 and 13; IEC 60529, IP54 |
| Includes | Inner Panel |
| Application | Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures; Provides a degree of protection from falling dirt, dust, oil and water. |
| Package Quantity | 1 |
