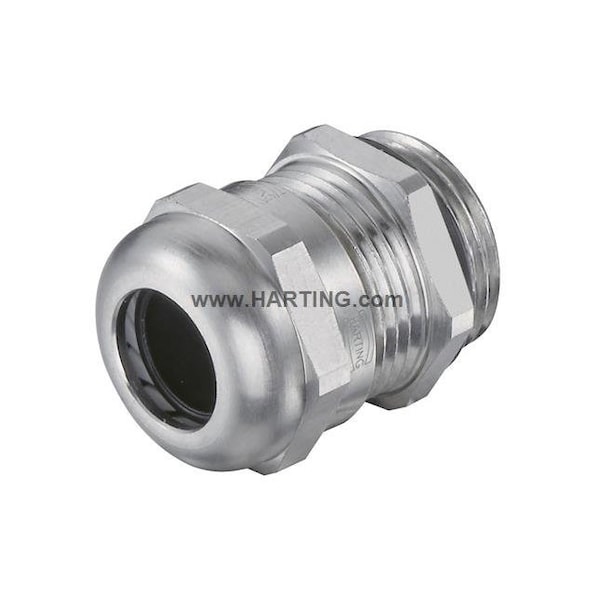

Cable Clamp M20, 5-9Mm, PK 10
| Item | Cable Gland |
|---|---|
| Clamp Material | Brass |
| Width | 24.4 mm |
| Cable Clamping Dia. | 5 to 9 mm |
| Clamp Finish | Nickel Plated |
| Standards | DNV GL; UL 514B QCRV.E479780; CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Size | M20 |
| Temp. Range | -40 to 100 deg C |
| Wrench size | 22 |
| Clamping range | 5 ... 9 mm |
| Material (clamping ring) | Polyamide (PA) |
| Degree of protection acc. to IEC 60529 | IP68 || IP69, IPX9K acc. to ISO 20653 |
| Series of hoods/housings | Han |
| Material (cable glands) | Brass |
| Approvals | DNV GL |
| Tightening torque | ≤10 Nm |
| Limiting temperature | -40 ... +100 °C |
| Material (seal) | NBR |
| Type of accessory | Cable gland |
| Surface (accessories) | Nickel plated |
| UL / CSA | UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Width across corners | 24.4 mm |
| Package Quantity | 10 |
