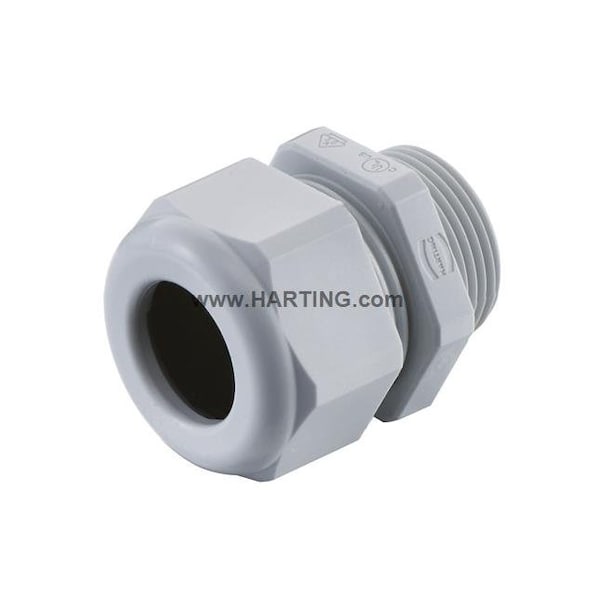

Cable Gland, 36 mm L, 12 mm Max Bundle Dia., Polyamide, 10 PK
| Item | Cable Gland |
|---|---|
| Nominal Length | 36 mm |
| Width | 26.4 mm |
| Nominal Max. Bundle Dia. | 12 mm |
| Color | Light Gray |
| Material | Polyamide |
| Thread Size | M20 |
| Standards | DNV GL; UL 514B QCRV.E479780; CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Series of hoods/housings | Han |
| Wrench size | 24 |
| Material flammability class acc. to UL 94 | V-0 |
| Tightening torque | ≤4.5 Nm |
| Degree of protection acc. to IEC 60529 | IP68 || IP69 / IPX9K acc. to ISO 20653 |
| Approvals | DNV GL |
| UL / CSA | UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Clamp Material | Polyamide |
| Temp. Range | -40 to 100 deg C |
| Package Quantity | 10 |
