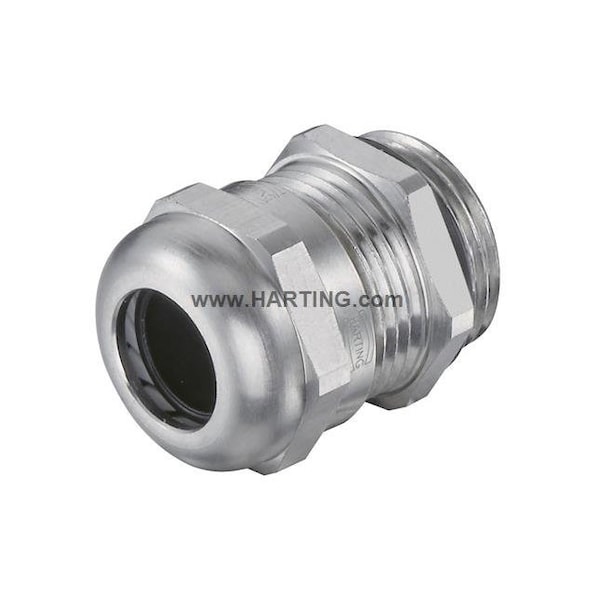

Conector de cable M20X1.5 6-12 mm, paquete de 10
| Item | Cable Gland |
|---|---|
| Cable or Pipe Diameter Range | 5 to 12 mm |
| Material of Construction | Brass |
| Width | 24.4 mm |
| Size | M20 |
| Series of hoods/housings | Han |
| Material (cable glands) | Brass |
| Approvals | DNV GL |
| Wrench size | 22 |
| Surface (accessories) | Nickel plated |
| Material (seal) | NBR |
| Type of accessory | Cable gland |
| Material (clamping ring) | Polyamide (PA) |
| Tightening torque | ≤10 Nm (depending on the cable and the seal insert used) |
| Clamping range | 5 ... 12 mm |
| UL / CSA | UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Degree of protection acc. to IEC 60529 | IP68 || IP69 / IPX9K acc. to ISO 20653 |
| Limiting temperature | -40 ... +100 °C |
| Width across corners | 24.4 mm |
| Package Quantity | 10 |
