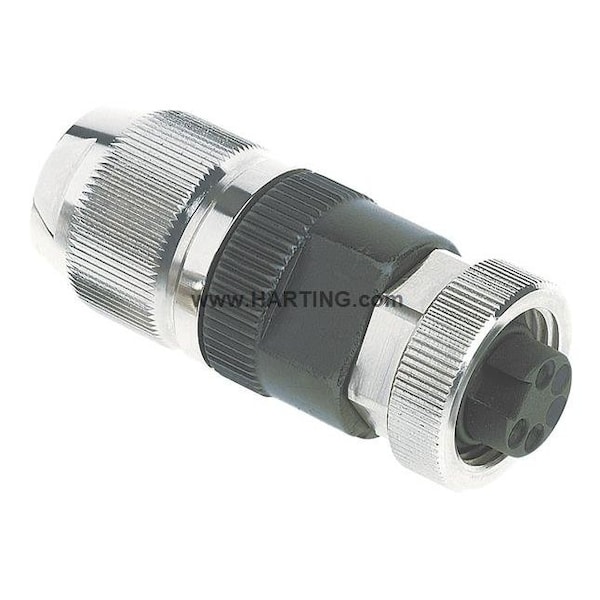

Conector circular con Harax 7/8" L 5 F.
| Min. Single Wire Size | 18 AWG |
|---|---|
| Max. Single Wire Size | 16 AWG |
| Max. Voltage | 230 V |
| Finish | Au Over Ni |
| Connection Material | Copper Alloy |
| Ambient Temp. Range | -40 to 85 deg C |
| Terminal Type | HARAX |
| Connector Type | Female |
| Material | Polyurethane, Polyamide ; Die Cast Zinc |
| Green Environmental Attribute | Pollution Degree 3 |
| Diameter | 2.8 mm |
| Description/Special Features | Straight |
| IP Rating | IP67, IP65 |
| Sub-Category | Connectors |
| Features | Straight |
| Approximate Amperage Rating - Grounding Braid | 10 A |
| Max. Temp. | 85 deg C |
| Item | Circular Connector |
| Current Rating | 10 A |
| Number of Contacts | 5 |
| Contact Finish | Gold Plated |
| Package Quantity | 1 |
