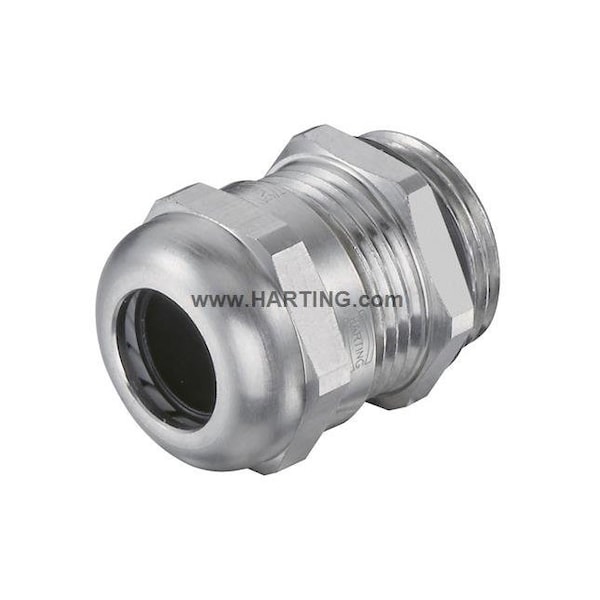

Cord Connector, Body Brass, Cable OD 20 mm
| Item | Cord Connector |
|---|---|
| Standards | DNV GL, ELV Compliant, REACH ANNEX XIV Substances, REACH Annex XVII Substances, REACH SVHC Substances, RoHS Compliant, UL/CSA |
| Length - Box to End of Connector | 31 mm |
| Includes | O-Ring |
| Box Connection | M32 |
| Cord Dia. Range | 13 to 20 mm |
| Hazardous Location Rating | Not Rated |
| Maximum Operating Temperature | 100 Degrees C |
| Thread Type | Not Applicable |
| For Minimum Cable OD | 13 mm |
| Sealing Ring Material | NBR |
| Liquid Tight | Yes |
| For Maximum Cable OD | 20 mm |
| Body Color | Silver |
| Grommet Material | Polyamide |
| Compatible Conduit Trade Size | Not Available |
| Thread Gender | Male |
| Minimum Operating Temperature | -40 Degrees C |
| Grommet Color Code | No Code |
| Series | Han CGM-M |
| Thread Size | M32 |
| IP Rating | IP68, IP69 |
| Overall Length | 39 mm |
| Connection Orientation | Straight |
| Body Material | Brass |
| Size | M32 |
| Clamping range | 13 ... 20 mm |
| Approvals | DNV GL |
| Material (cable glands) | Brass |
| Material (seal) | NBR |
| Material (clamping ring) | Polyamide (PA) |
| Surface (accessories) | Nickel plated |
| Tightening torque | ≤15 Nm |
| Limiting temperature | -40 ... +100 °C |
| Width across corners | 44 mm |
| Series of hoods/housings | Han |
| UL / CSA | UL 514B QCRV.E479780 || CSA-C22.2 No. 18.3 QCRV7.E479780 |
| Degree of protection acc. to IEC 60529 | IP68 || IP69 / IPX9K acc. to ISO 20653 |
| Wrench size | 40 |
| Type of accessory | Cable gland |
| Package Quantity | 1 |
