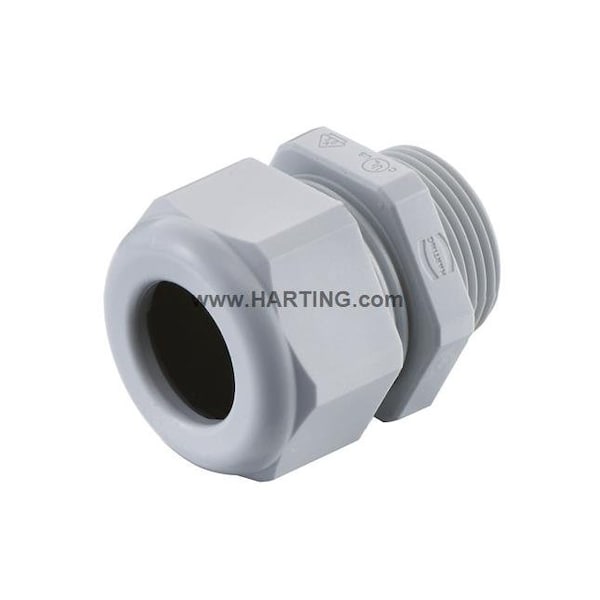

Conector de cordón, poliamida, diámetro exterior del cable de 9 mm.
| Color | Light Gray |
|---|---|
| Series | Han CGM-M |
| Width | 26.4 mm |
| Material | Polyamide |
| Includes | O-Ring |
| Item | Cord Connector |
| Overall Length | 36 mm |
| Cord Dia. Range | 5 to 9 mm |
| For Minimum Cable OD | 5 mm |
| Thread Type | Not Applicable |
| Box Connection | M20 |
| Body Material | Polyamide |
| Liquid Tight | Yes |
| For Maximum Cable OD | 9 mm |
| Thread Gender | Male |
| Hazardous Location Rating | Not Rated |
| Body Color | Gray |
| Minimum Operating Temperature | -40 deg C |
| Length - Box to End of Connector | 27 mm |
| Sealing Ring Material | NBR |
| Connection Orientation | Straight |
| Thread Size | M20 |
| Compatible Conduit Trade Size | Not Available |
| Grommet Material | Polyamide |
| Maximum Operating Temperature | 100 deg C |
| Grommet Color Code | No Code |
| Standards | DNV GL, ELV Compliant, REACH ANNEX XIV Substances, REACH Annex XVII Substances, REACH SVHC Substances, RoHS Compliant, UL/CSA |
| Max. Temp. | 100 deg C |
| IP Rating | IP68, IP69 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
