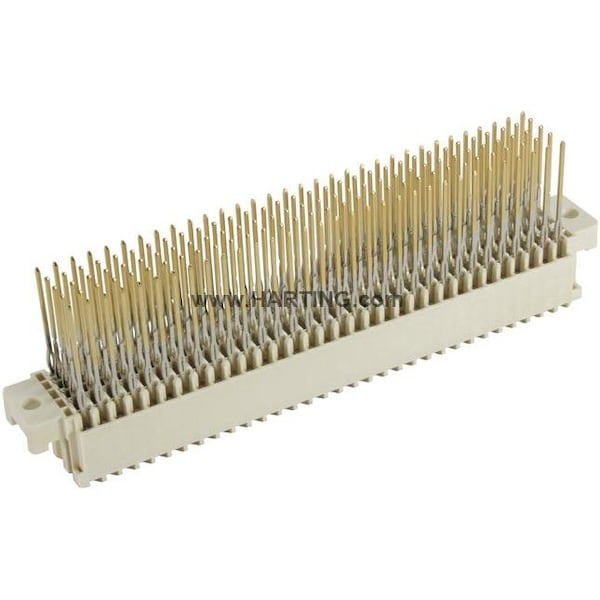

Señal DIN harbus64-160FP-17, 0C1-2, PK 20
| Color | Beige |
|---|---|
| Series | Har-Bus 64 |
| Green Environmental Attribute | Lead Free |
| Material | Liquid Crystal Polymer |
| Sub-Category | Connectors |
| Max. Temp. | 105 deg C |
| Terminal Type | Press-In |
| Finish | Noble Metal over Ni |
| Description/Special Features | Straight |
| Connection Material | Copper Alloy |
| Standards | UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Item | PCB Connector |
| Approximate Amperage Rating - Grounding Braid | 1 A |
| Number of Contacts | 160 |
| Number of Rows | 5 |
| Contact Finish | Nickel Plated, Noble Metal |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 20 |
