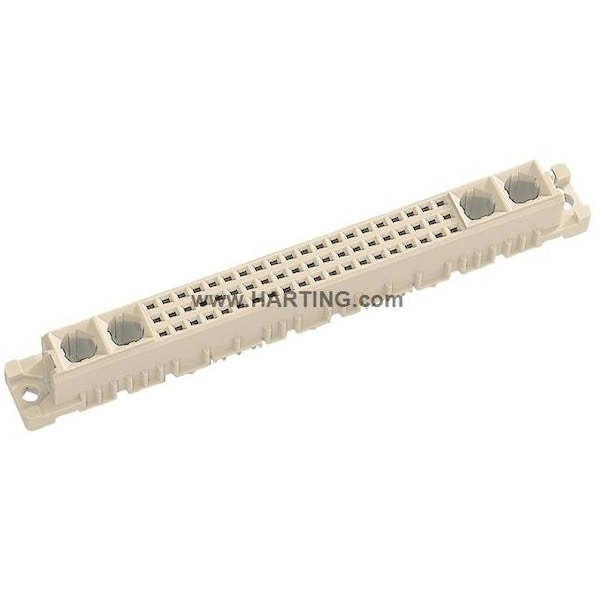

Señal DIN M60+4FS-4, 5C1-2, paquete con 20 piezas.
| Color | Pebble Gray |
|---|---|
| Series | DIN 41612 |
| Material | Glass Fiber Filled Thermoplastic Resin |
| Sub-Category | Connectors |
| Terminal Type | Soldering |
| Max. Temp. | 125 deg C |
| Green Environmental Attribute | Lead Free |
| Standards | UL 1977 ECBT2.E102079; CSA-C22.2 No. 182.3 ECBT8.E102079 |
| Finish | Noble Metal over Ni Sn over Ni |
| Description/Special Features | Straight |
| Approximate Amperage Rating - Grounding Braid | 2 A |
| Connection Material | Copper Alloy |
| Item | PCB Connector |
| Number of Rows | 3 |
| Number of Contacts | 64 |
| Contact Finish | Noble Metal; Tin over Nickel |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 20 |
