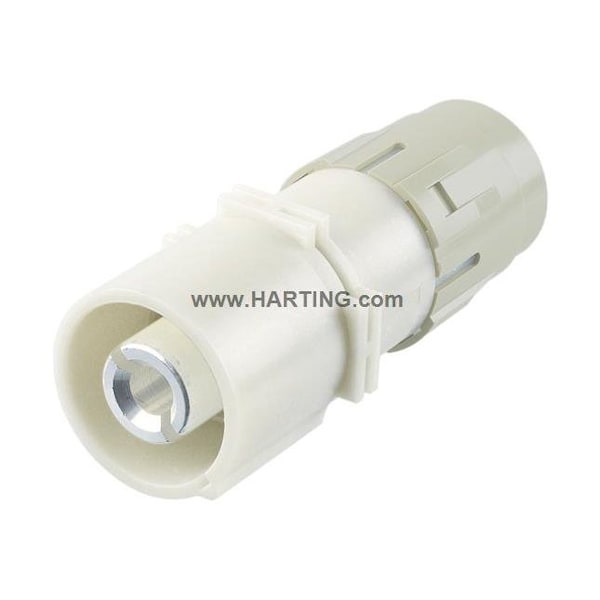

Han 1Hc-650A-Male-Ax 150-180Mm² se traduce como: Conector Han 1Hc-650A-Macho-Ax de 150-180 mm².
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 150 mm2 |
| Max. Single Wire Size | 185 mm2 |
| Series | Han HC Modular |
| Max. Voltage | 4,000 V |
| Material | Polycarbonate, Polyamide |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076 |
| Terminal Type | Screw |
| Diameter | 26.5 mm |
| Green Environmental Attribute | Pollution Degree 3 |
| Connection Material | Copper Alloy |
| Sub-Category | Inserts |
| Approximate Amperage Rating - Grounding Braid | 650 A |
| Connector Type | Male |
| Description/Special Features | The Vibration and Shock Resistance can only be Met If The Cables are Fixed at an Appropriate Distance. Instructions for the Spacing of Strain Relief can be Found In The Document in Ecatalogue Under the Section Instructions. |
| Finish | Silver Plated |
| Max. Temp. | 125 deg C |
| Item | Contact Insert |
| Current Rating | 650 A |
| Contact Finish | Silver Plated |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
