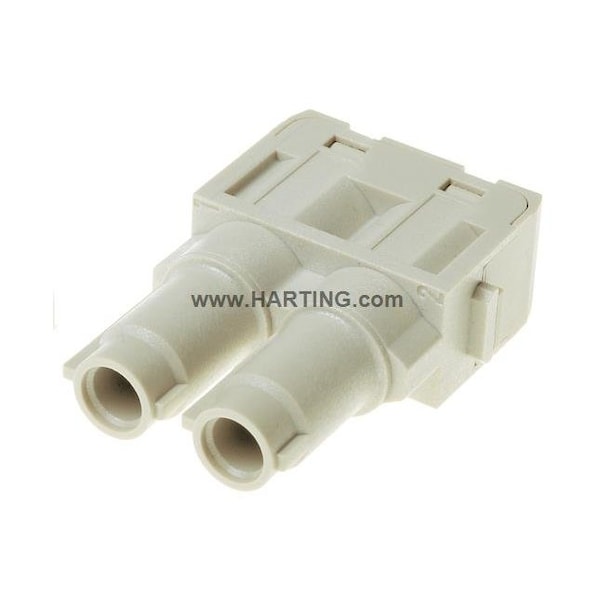

Han 2Mod-F-Ax 70A, 10-22 Mm², PK 2
Se traduce como: Conector 2Mod-F-Ax 70A, 10-22 Mm², paquete con 2 unidades.
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 14 mm2 |
| Max. Single Wire Size | 22 mm2 |
| Series | Han-Modular |
| Max. Voltage | 1,000 V |
| Material | Polycarbonate |
| Terminal Type | Screw |
| Item | Connector Module |
| Max. Temp. | 125 deg C |
| Connection Material | Copper Alloy |
| Green Environmental Attribute | Pollution Degree 3 |
| Sub-Category | Modules |
| Connector Type | Female |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076; UL 2237 PVVA2.E318390; CSA-C22.2 No. 182.3 PVVA8.E318390 |
| Approximate Amperage Rating - Grounding Braid | 70 A |
| Finish | Silver Plated |
| Number of Contacts | 2 |
| Current Rating | 70 A |
| Contact Finish | Silver Plated |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 2 |
