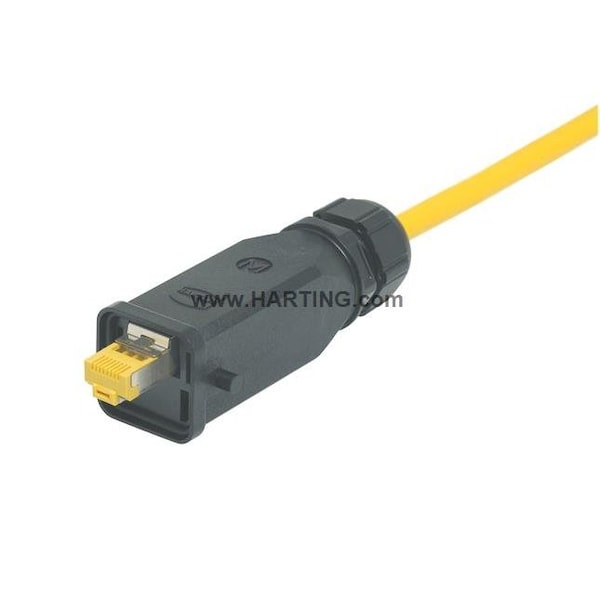

Conector para montaje de cable Han 3A RJ45, negro de alta calidad y durabilidad. Conexión segura y estable para aplicaciones de red. Ideal para entornos industriales.
| Shielded | Yes |
|---|---|
| Standards | California Proposition 65, CSA-C22.2 No. 182.3 ECBT8.E102079, DNV GL, ELV Compliant, RoHS Complaint, UL 1977 ECBT2.E102079 |
| Wire Size | 24 to 22 AWG (Solid), 27 to 22 AWG (Standard) |
| Item | Han 3A RJ45 Cable-Mount Connector |
| Performance Category | Cat6 |
| Number of Poles | 8 |
| IP Rating | IP65, IP67 |
| Connector Orientation | Straight |
| Connector Gender | Male |
| Connection Type | Insulation Displacement |
| Maximum Operating Temperature | 70 deg C |
| Cable Diameter | 5 to 9 mm |
| Housing Material | Polycarbonate |
| Series | RJ45 |
| Minimum Operating Temperature | -40 deg C |
| Application | Data |
| Data Rate | 10 Mbits, 100 Mbits, 1 Gbits, 2.5 Gbits, 5 Gbits, 10 Gbits |
| Connector Color | Black |
| Package Quantity | 1 |
