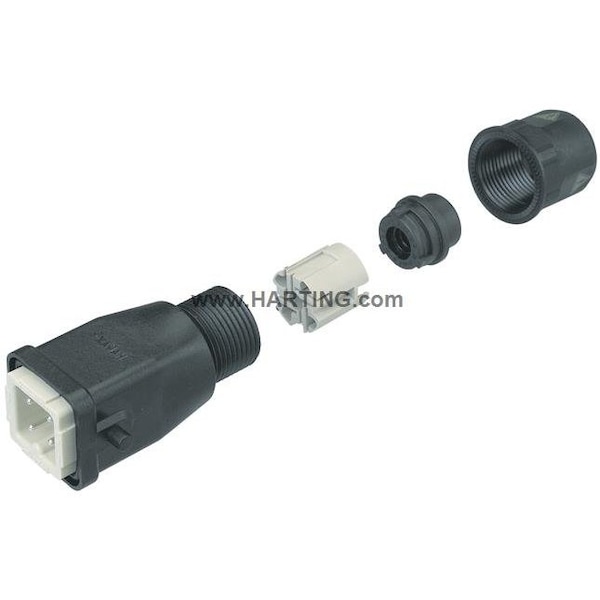

Hay 3A con Harax / Masculino, Paquete de 10.
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 0.75 mm2 |
| Max. Single Wire Size | 1.5 mm2 |
| Series | Han A |
| Max. Voltage | 230 V |
| Finish | Silver Plated |
| Standards | EN 45545-2 (2020-08) |
| Sub-Category | Connector Sets |
| Approximate Amperage Rating - Grounding Braid | 10 A |
| Green Environmental Attribute | Pollution Degree 3 |
| Material | Polycarbonate |
| Item | Rectangular Connector Set |
| Connector Type | Male |
| Max. Temp. | 85 deg C |
| IP Rating | IP67, IP65 |
| Connection Material | Copper Alloy |
| Type | Hood |
| Terminal Type | HARAX |
| Contact Finish | Silver Plated |
| Current Rating | 10 A |
| Number of Contacts | 3 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 10 |
