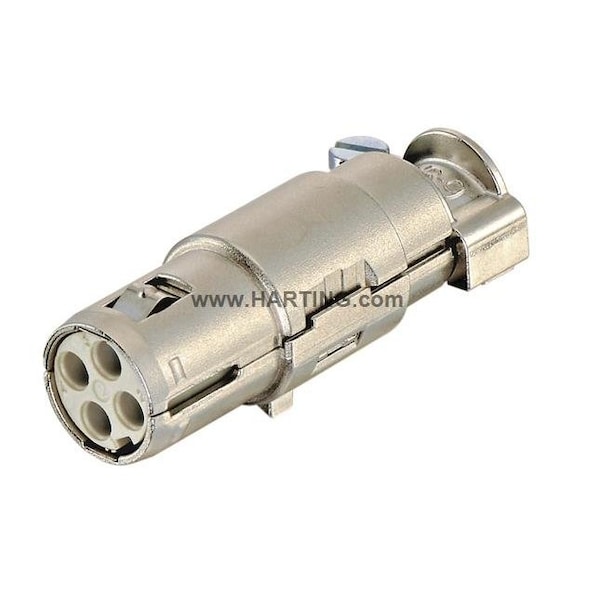

Han 4 Quintax Female Zinc
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 0.14 mm2 |
| Max. Single Wire Size | 2.5 mm2 |
| Series | Han-Quintax |
| Max. Voltage | 50 V |
| Sub-Category | Inserts |
| Standards | EN 45545-2 (2020-08); UL 1977 ECBT2.E235076; CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Item | Connector Module |
| Max. Temp. | 85 deg C |
| Green Environmental Attribute | Pollution Degree 3 |
| Connector Type | Female |
| Approximate Amperage Rating - Grounding Braid | 10 A |
| Material | Polycarbonate; Die Cast Zinc |
| Number of Contacts | 4 |
| Current Rating | 10 A |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 1 |
