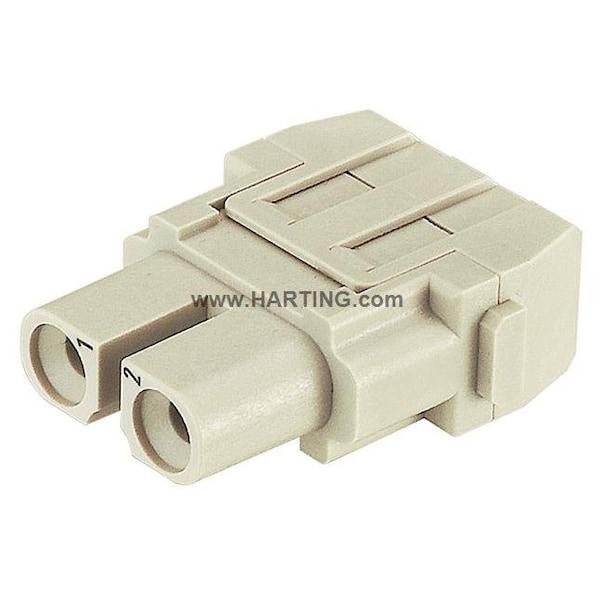

Módulo de engarce de 40 amperes, hembra, paquete de 2.
| Color | Pebble Gray |
|---|---|
| Min. Single Wire Size | 1.5 mm2 |
| Max. Single Wire Size | 10 mm2 |
| Series | Han-Modular |
| Max. Voltage | 1,000 V |
| Connector Type | Female |
| Max. Temp. | 125 deg C |
| Sub-Category | Modules |
| Approximate Amperage Rating - Grounding Braid | 40 A |
| Material | Polycarbonate |
| Item | Connector Module |
| Green Environmental Attribute | Pollution Degree 3 |
| Standards | EN 45545-2 (2020-08); DNV GL; UL 1977 ECBT2.E235076 |
| Terminal Type | Crimp |
| Current Rating | 40 A |
| Number of Contacts | 2 |
| Flammability Rating | UL 94 V-0 |
| Package Quantity | 2 |
